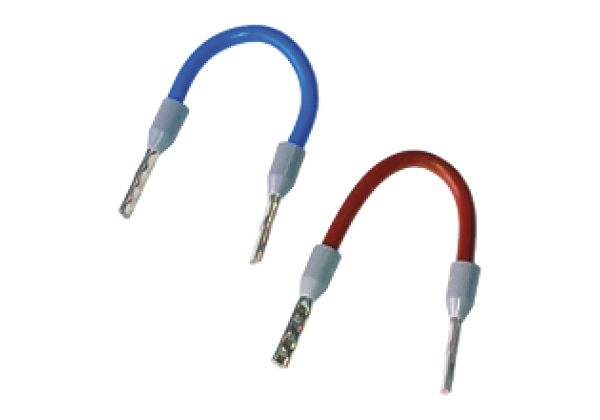

Bridge VAZ-BRIDGE-BU/BN60MM/0,75-100
Brand: Pepperl+Fuchs
Code: VAZ-BRIDGE-BU/BN60MM/0,75-100
Jumper for switch cabinet modules with spring terminals or screw terminals
Datasheet excerpt: Technical data of VAZ-BRIDGE-BU/BN60MM/0,75-100
| Product Description |
|---|
| Jumper for switch cabinet modules with spring terminals or screw terminals |
| Electrical specifications | ||
|---|---|---|
| Nominal voltage | 48 V | |
| Current loading capacity | 8 A at 40 °C DIN VDE 0298 Part 4 HD 516/VDE 0298-300 | |
| Ambient conditions | ||
| Ambient temperature | -30... 80 °C (-22... 176 °F) fixed | |
| Mechanical specifications | ||
| Core cross-section | Fine-stranded copper 0.75 mm2 | |
| Material | ||
| Core insulation | PVC | |
| Cable | H05V-K, rated voltage 300/500 V | |
| Color | brown, blue | |
| Connection possibilities | Suitable for spring terminals and screw terminals | |
| Cable length | 60 mm | |
| Flammability | ||
| Cable | Flame-retardant as per IEC 60332-1-2 | |
| Note | 100 blue and 100 brown jumpers per packaging unit | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
