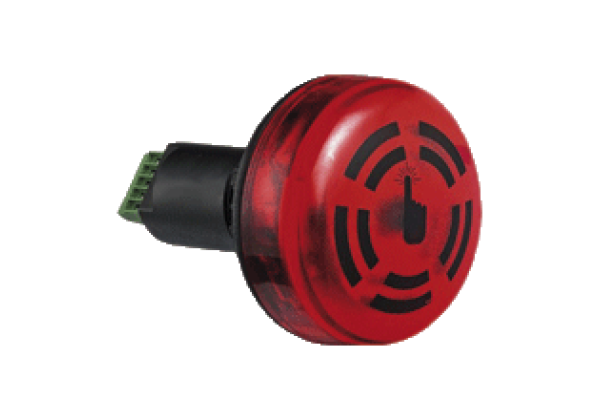

buzzer element VAZ-BUZZER/LT-RD
Brand: Pepperl+Fuchs
Code: VAZ-BUZZER/LT-RD
buzzer element with acknowledgment
Datasheet excerpt: Technical data of VAZ-BUZZER/LT-RD
| Product Description |
|---|
| buzzer element with acknowledgment |
| General specifications | ||
|---|---|---|
| UL File Number | E223176 | |
| Color | red | |
| Frequency | 2.8 kHz Continuous signal | |
| Loudness | 80 dB | |
| Indicators/operating means | ||
| LED red | active | |
| Electrical specifications | ||
| Rated operating voltage | 24 V DC | |
| Rated operating current | ≤ 80 mA | |
| Inrush current | < 500 mA | |
| Compliance with standards and directives | ||
| Directive conformity | ||
| EMC Directive 2004/108/EC | EN 60947-5-1:2005 EN 60947-1:2007 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Ambient conditions | ||
| Ambient temperature | -20... 50 °C (-4... 122 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | plug-in screw terminals Wire cross section: ≤1.5 mm2 fine-strand | |
| Material | PC/ABS | |
| Mass | 40 g | |
| Life span | 50000 h (Acoustic: min. 5000 h) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371214 |
| ECLASS 12.0 | 27371214 |
| ECLASS 11.0 | 27371214 |
| ECLASS 10.0.1 | 27371214 |
| ECLASS 9.0 | 27371214 |
| ECLASS 8.0 | 27371214 |
| ECLASS 5.1 | 27371214 |
| ETIM 9.0 | EC001026 |
| ETIM 8.0 | EC001026 |
| ETIM 7.0 | EC001026 |
| ETIM 6.0 | EC001026 |
| ETIM 5.0 | EC001026 |
| UNSPSC 12.1 | 39121533 |
