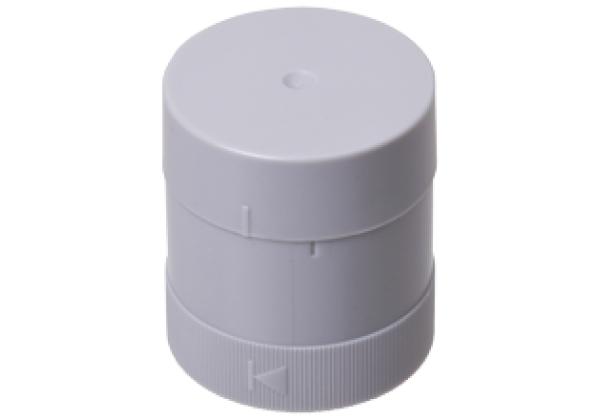

Stack light terminal base VAZ-CLAMP-40MM
Brand: Pepperl+Fuchs
Code: VAZ-CLAMP-40MM
Stack light terminal base with cover plate
Datasheet excerpt: Technical data of VAZ-CLAMP-40MM
| Product Description |
|---|
| Stack light terminal base with cover plate |
| General specifications | ||
|---|---|---|
| UL File Number | E223176 | |
| Color | grey | |
| Electrical specifications | ||
| Rated operating voltage | 24 V AC/DC | |
| Ambient conditions | ||
| Ambient temperature | -30... 60 °C (-22... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP66 | |
| Connection | Bayonet system | |
| Material | PC | |
| Mass | 25 g | |
| Connection possibilities | Spring terminal, max. 1.5 mm2 | |
| Note | fits the straight mounting bracket | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242692 |
| ECLASS 12.0 | 27242692 |
| ECLASS 11.0 | 27242692 |
| ECLASS 10.0.1 | 27242692 |
| ECLASS 9.0 | 27242692 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121535 |
