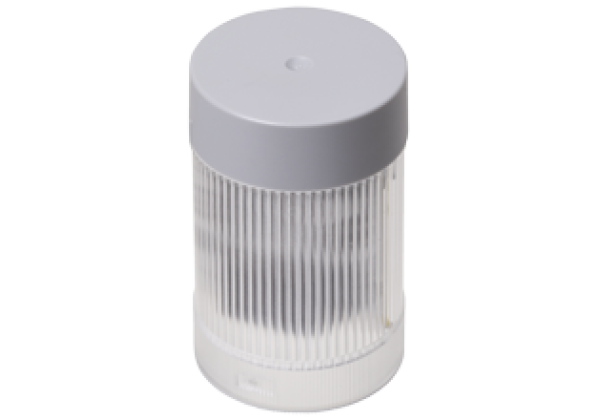

Signal tower connection element IO-Link VAZ-CLAMP-40MM-IO
Brand: Pepperl+Fuchs
Code: VAZ-CLAMP-40MM-IO
Signal tower connection element IO-Link with cover
Datasheet excerpt: Technical data of VAZ-CLAMP-40MM-IO
| Product Description |
|---|
| Signal tower connection element IO-Link with cover |
| General specifications | ||
|---|---|---|
| UL File Number | E223176 | |
| Color | grey | |
| Electrical specifications | ||
| Rated operating voltage | 24 V DC | |
| Rated operating current | 6 mA | |
| Current consumption | max. 500 mA per lighting element, max. 2 A in total | |
| Inrush current | 400 mA | |
| Interface | ||
| Interface type | IO-Link ( via C/Q = pin 4 ) | |
| IO-Link revision | 1.1 | |
| Vendor ID | 1 (0x0001) | |
| Device ID | 0x0F0301 (983809) | |
| Transfer rate | COM2 (38.4 kBit/s) | |
| Min. cycle time | 5 ms | |
| Process data width | Process data input 0 Byte Process data output 2 Byte | |
| SIO mode support | no | |
| Compatible master port type | A | |
| Ambient conditions | ||
| Ambient temperature | -30... 60 °C (-22... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP66 | |
| Connection | Bayonet system | |
| Material | PC | |
| Mass | 35 g | |
| Connection possibilities | Spring terminal, max. 1.5 mm2 | |
| Life span | max. 50,000 h | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242692 |
| ECLASS 12.0 | 27242692 |
| ECLASS 11.0 | 27242692 |
| ECLASS 10.0.1 | 27242692 |
| ECLASS 9.0 | 27242692 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121535 |
