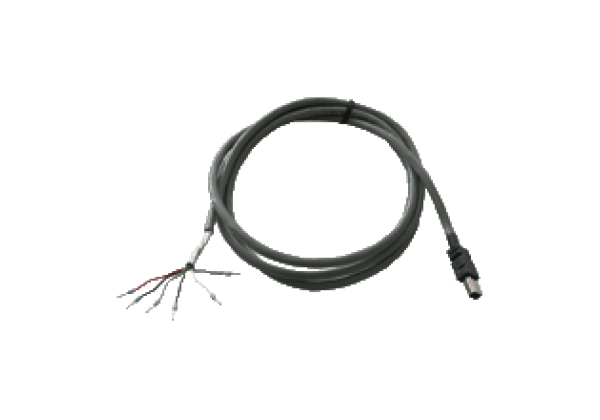

Connecting cable VAZ-ENC-1,5M-PVC
Brand: Pepperl+Fuchs
Code: VAZ-ENC-1,5M-PVC
Connection cable for connecting encoders to a speed monitor
Datasheet excerpt: Technical data of VAZ-ENC-1,5M-PVC
| Product Description |
|---|
| Connection cable for connecting encoders to a speed monitor |
| Electrical specifications | ||
|---|---|---|
| Nominal voltage | 30 V AC | |
| Nominal current | 1 A | |
| Insulation resistance | min. 500 MΩ | |
| Mechanical specifications | ||
| Connection | Encoder: open conductor ends Speed monitor: Connector 8-pin | |
| Material | ||
| Contact surface | copper alloy | |
| Housing | UL 94 V-0 | |
| Cable | PVC | |
| Cable | ||
| Sheath diameter | 5.89 mm | |
| Cores | 6 x 0,2 mm2 Copper tin-plated | |
| Shield | Foil | |
| Length | 1.5 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060106 |
| ECLASS 12.0 | 27060106 |
| ECLASS 11.0 | 27060106 |
| ECLASS 10.0.1 | 27060106 |
| ECLASS 9.0 | 27062011 |
| ECLASS 8.0 | 27062011 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003250 |
| ETIM 8.0 | EC003250 |
| ETIM 7.0 | EC003250 |
| ETIM 6.0 | EC001578 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
