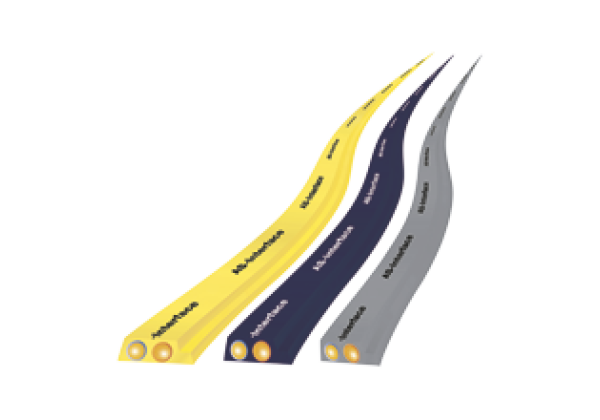

AS-Interface flat cable VAZ-FK-*-**
Brand: Pepperl+Fuchs
Code: VAZ-FK-*-**
AS-Interface flat cable
Datasheet excerpt: Technical data of VAZ-FK-*-**
| Product Description |
|---|
| AS-Interface flat cable |
| Electrical specifications | ||
|---|---|---|
| Nominal voltage | 24 V | |
| Current loading capacity | According to DIN VDE 0298 Part 4, Table 6, Column 4 | |
| Ambient conditions | ||
| Conductor temperature | Operating mode: 90 °C (363 K) Short-circuit: 200 °C (473 K) | |
| Ambient temperature | -40... 85 °C (-40... 185 °F) at standstill, -25... 85 °C (-13... 185 °F) in motion | |
| Mechanical specifications | ||
| Core cross section | Copper tin-plated, extra-fine wire, class 6 in accordance with DIN VDE 0295 cross-section 1.5 mm2 | |
| Bending radius | min. permissible bend radii in accordance with DIN VDE 0298 Part 3, Table 2 Bending stress only permitted on the wide side of the cable | |
| Tension loading | max. 50 N/mm2 on laying acc. to DIN VDE 0298 Part 3 | |
| Cable length | 100 m , also, on request, 1000 m (Trommel) | |
| Note | The cable is intended for use as a bus power line in inside areas. Only cable with a black sheathing is suitable for outside use. | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060106 |
| ECLASS 12.0 | 27060106 |
| ECLASS 11.0 | 27060106 |
| ECLASS 10.0.1 | 27060106 |
| ECLASS 9.0 | 27062011 |
| ECLASS 8.0 | 27062011 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003250 |
| ETIM 8.0 | EC003250 |
| ETIM 7.0 | EC003250 |
| ETIM 6.0 | EC001578 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
