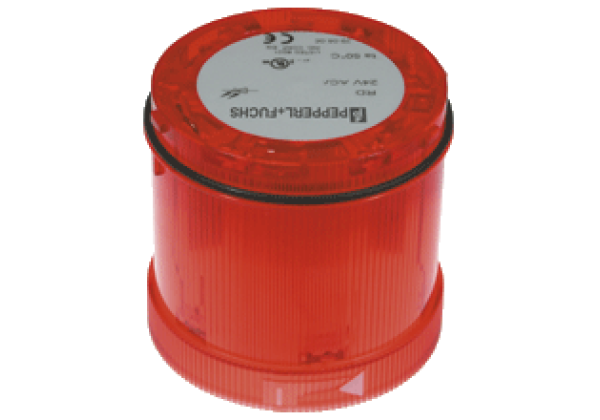

Stack light LED flashing light element VAZ-FLASH-70MM-RD
Brand: Pepperl+Fuchs
Code: VAZ-FLASH-70MM-RD
Stack light LED flashing light element, red
Datasheet excerpt: Technical data of VAZ-FLASH-70MM-RD
| Product Description |
|---|
| Stack light LED flashing light element, red |
| General specifications | ||
|---|---|---|
| UL File Number | E223176 | |
| Color | red | |
| Frequency | approx. 1 Hz | |
| Functional safety related parameters | ||
| MTTFd | 700 a | |
| Electrical specifications | ||
| Rated operating voltage | 24 V DC | |
| Rated operating current | 35 mA | |
| Protection class | III | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 60947-5-1 EN 60947-1 | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| Ambient conditions | ||
| Ambient temperature | -20... 50 °C (-4... 122 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | Bayonet system | |
| Life span | Max. 50000 hours = 5.7 years (continuous operation) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371220 |
| ECLASS 12.0 | 27371220 |
| ECLASS 11.0 | 27371220 |
| ECLASS 10.0.1 | 27371220 |
| ECLASS 9.0 | 27371220 |
| ECLASS 8.0 | 27371220 |
| ECLASS 5.1 | 27371220 |
| ETIM 9.0 | EC000232 |
| ETIM 8.0 | EC000232 |
| ETIM 7.0 | EC000232 |
| ETIM 6.0 | EC000232 |
| ETIM 5.0 | EC000232 |
| UNSPSC 12.1 | 39121533 |
