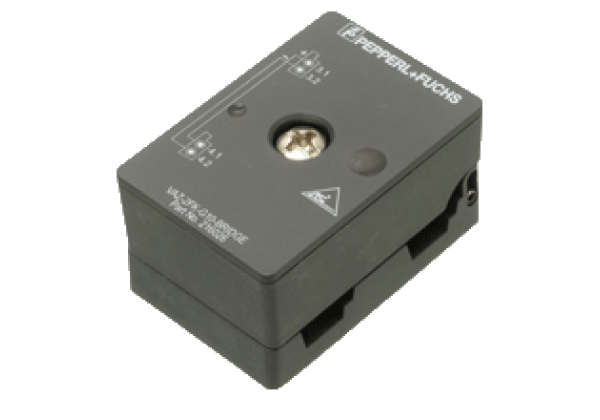

Voltage limiter VAZ-G10-LIMITER
Brand: Pepperl+Fuchs
Code: VAZ-G10-LIMITER
Voltage limiter G10
Datasheet excerpt: Technical data of VAZ-G10-LIMITER
| Product Description |
|---|
| Voltage limiter G10 |
| General specifications | ||
|---|---|---|
| Construction type | Flat cable terminals | |
| Electrical specifications | ||
| Rated operating voltage | 24 V DC ± 10 % PELV | |
| Protection class | III | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Ambient conditions | ||
| Ambient temperature | -25... 50 °C (-13... 122 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-* | |
| Connection | Flat cable: cable piercing method | |
| Material | ||
| Contacts | CuSn / Au | |
| Housing | PBT | |
| Mounting screw | Stainless steel 1.4305 / AISI 303 | |
| Mass | 40 g | |
| Tightening torque, fastening screws | 1.65 Nm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242692 |
| ECLASS 12.0 | 27242692 |
| ECLASS 11.0 | 27242692 |
| ECLASS 10.0.1 | 27242692 |
| ECLASS 9.0 | 27242692 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121535 |
