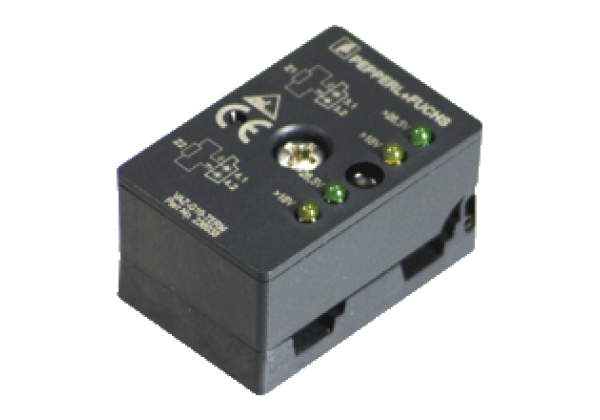

Terminal resistor VAZ-G10-TERM

Code: VAZ-G10-TERM

Passive bus termination G10

Datasheet excerpt: Technical data of VAZ-G10-TERM

Product Description
Passive bus termination G10

General specifications
AS-Interface specification		V3.0
UL File Number		E223772 "For use in NFPA 79 Applications only"
Indicators/operating means
LED green		AS-Interface voltage > 26 V: LED lights
LED yellow		AS-Interface voltage > 18.5 V: LED lights
Electrical specifications
Rated operating voltage		18.5... 31.6 V
Rated operating current		≤ 15 mA per connection
Protection class		III
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 62026-2:2013 EN 61326:2006
Standard conformity
Degree of protection		EN 60529:2000
Fieldbus standard		EN 62026-2:2013
Emitted interference		EN 61000-6-4:2007
AS-Interface		EN 62026-2:2013
Noise immunity		EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013
Approvals and certificates
UL approval		cULus Listed, Type 1 enclosure
	Maximum permissible ambient temperature	max. 65 °C (max. 149 °F)
Ambient conditions
Ambient temperature		-25... 70 °C (-13... 158 °F)
Storage temperature		-25... 85 °C (-13... 185 °F)
Shock and impact resistance		30 g, 11 ms in 6 spatial directions 3 shocks 10 g, 16 ms in 6 spatial directions 1000 shocks
Vibration resistance		0.75 mm 10... 57 Hz , 5 g 57... 150 Hz, 20 cycles
Mechanical specifications
Degree of protection		IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*
Connection		via Flat cable
Material
	Housing	PBT PC
	Mounting screw	Stainless steel 1.4305 / AISI 303
Mass		100 g
Tightening torque, fastening screws		1.65 Nm
