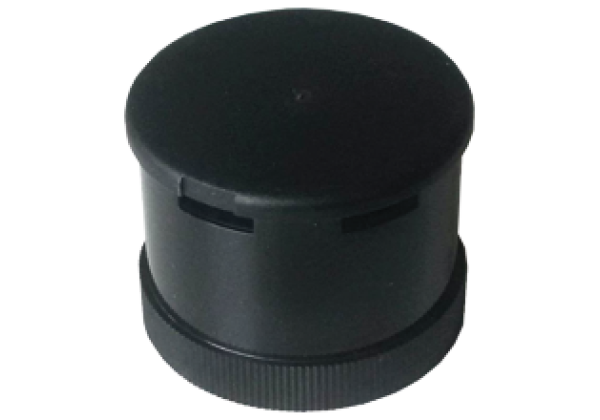

Stack light audible alarm VAZ-HORN-70MM-105DBA
Brand: Pepperl+Fuchs
Code: VAZ-HORN-70MM-105DBA
Stack light audible alarm
Datasheet excerpt: Technical data of VAZ-HORN-70MM-105DBA
| Product Description |
|---|
| Stack light audible alarm |
| General specifications | ||
|---|---|---|
| UL File Number | E223176 | |
| Color | black | |
| Frequency | approx. 2.5/3.5 kHz Alternating | |
| Loudness | 105 dB | |
| Functional safety related parameters | ||
| MTTFd | 1100 a | |
| Electrical specifications | ||
| Rated operating voltage | 24 V DC ± 10 % | |
| Current consumption | 40 mA | |
| Surge protection | overvoltage category II | |
| Inrush current | max. 100 mA | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 60947-5-1:2004+A1:2009 EN 60947-1:2007 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Ambient conditions | ||
| Ambient temperature | -20... 50 °C (-4... 122 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP65 (mounted) | |
| Connection | Bayonet system | |
| Material | ||
| Housing | PC | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371214 |
| ECLASS 12.0 | 27371214 |
| ECLASS 11.0 | 27371214 |
| ECLASS 10.0.1 | 27371214 |
| ECLASS 9.0 | 27371214 |
| ECLASS 8.0 | 27371214 |
| ECLASS 5.1 | 27371214 |
| ETIM 9.0 | EC001026 |
| ETIM 8.0 | EC001026 |
| ETIM 7.0 | EC001026 |
| ETIM 6.0 | EC001026 |
| ETIM 5.0 | EC001026 |
| UNSPSC 12.1 | 39121533 |
