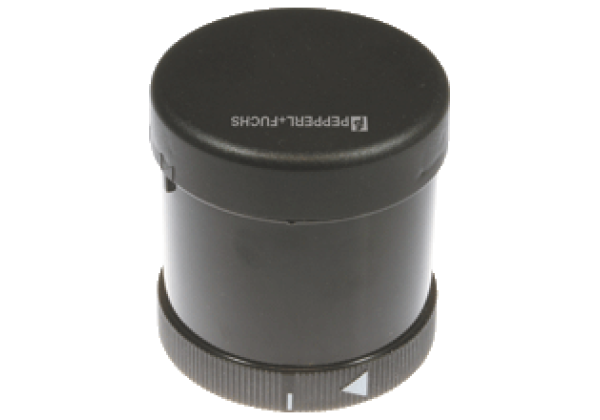

Stack light audible alarm VAZ-HORN1-70MM-85DBA
Brand: Pepperl+Fuchs
Code: VAZ-HORN1-70MM-85DBA
Stack light audible alarm
Datasheet excerpt: Technical data of VAZ-HORN1-70MM-85DBA
| Product Description |
|---|
| Stack light audible alarm |
| General specifications | ||
|---|---|---|
| UL File Number | E223176 | |
| Color | black | |
| Frequency | 1.75 kHz Duration/pulse | |
| Functional safety related parameters | ||
| MTTFd | 4600 a | |
| Electrical specifications | ||
| Rated operating voltage | 24 V AC/DC | |
| Rated operating current | ≤ 11 mA | |
| Inrush current | 100 mA (< 50 ms) | |
| Ambient conditions | ||
| Ambient temperature | -20... 50 °C (-4... 122 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | Bayonet system | |
| Life span | min. 5000 hours | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371214 |
| ECLASS 12.0 | 27371214 |
| ECLASS 11.0 | 27371214 |
| ECLASS 10.0.1 | 27371214 |
| ECLASS 9.0 | 27371214 |
| ECLASS 8.0 | 27371214 |
| ECLASS 5.1 | 27371214 |
| ETIM 9.0 | EC001026 |
| ETIM 8.0 | EC001026 |
| ETIM 7.0 | EC001026 |
| ETIM 6.0 | EC001026 |
| ETIM 5.0 | EC001026 |
| UNSPSC 12.1 | 39121533 |
