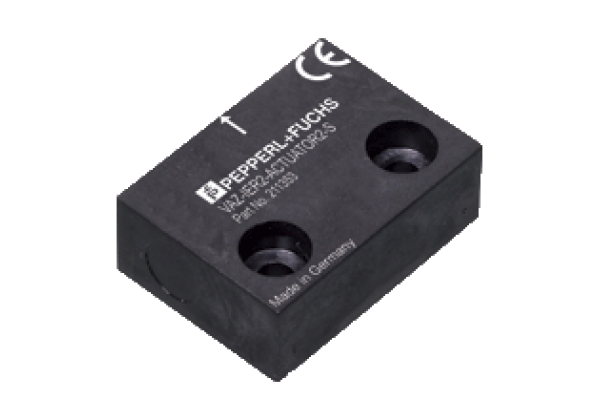

Activator VAZ-IER2-ACTUATOR2-S
Brand: Pepperl+Fuchs
Code: VAZ-IER2-ACTUATOR2-S
Actuator for non-contact AS-Interface Reed safety switch
Datasheet excerpt: Technical data of VAZ-IER2-ACTUATOR2-S
| Product Description |
|---|
| Actuator for non-contact AS-Interface Reed safety switch |
| General specifications | ||
|---|---|---|
| Detection type | magnetic | |
| Center offset | ± 2.5 mm at distance s = 3 mm | |
| UL File Number | E155795 | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 IEC 60947-5-3:1999 | |
| Machinery Directive | ||
| Directive 2006/42/EC | EN ISO 12100-1, -2:2003 EN 1088:1995+A2:2008 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Functional safety | ISO 13849-1:2008 (up to category 3/PL e) EN ISO 12100-1, -2:2003 EN 1088:1995+A2:2008 | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Material | ||
| Housing | PPS | |
| Installation | Active surface facing Read head | |
| Mass | 20 g | |
| General information | ||
| Scope of delivery | 1 actuator; 2 safety screws, M4 x 14 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371228 |
| ECLASS 12.0 | 27371228 |
| ECLASS 11.0 | 27371228 |
| ECLASS 10.0.1 | 27371228 |
| ECLASS 9.0 | 27371228 |
| ECLASS 8.0 | 27371228 |
| ECLASS 5.1 | 27371228 |
| ETIM 9.0 | EC001028 |
| ETIM 8.0 | EC001028 |
| ETIM 7.0 | EC001028 |
| ETIM 6.0 | EC001028 |
| ETIM 5.0 | EC001028 |
| UNSPSC 12.1 | 39121533 |
