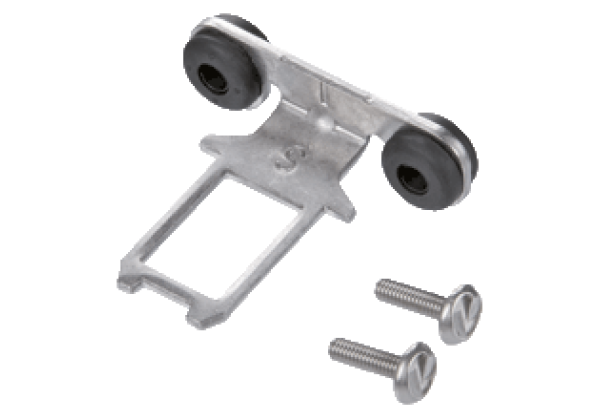

Actuator for safety switches VAZ-IM1-90°-BOLT-S
Brand: Pepperl+Fuchs
Code: VAZ-IM1-90°-BOLT-S
Right-angled actuator for AS-Interface safety switches
Datasheet excerpt: Technical data of VAZ-IM1-90°-BOLT-S
| Product Description |
|---|
| Right-angled actuator for AS-Interface safety switches |
| Mechanical specifications | ||
|---|---|---|
| Material | stainless steel | |
| Mounting screw | stainless steel | |
| Tension force | max. 1500 N | |
| door radius | min. 300 mm | |
| caster | 5 mm | |
| General information | ||
| Scope of delivery | 1 right-angled actuator, with rubber grommet; 2 safety screws, stainless steel M4 x 14 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242692 |
| ECLASS 12.0 | 27242692 |
| ECLASS 11.0 | 27242692 |
| ECLASS 10.0.1 | 27242692 |
| ECLASS 9.0 | 27242692 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121535 |
