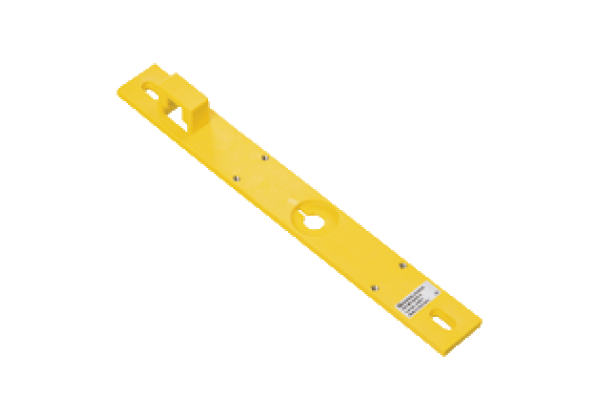

Switch mount for safety switches VAZ-IM1-BASE-S
Brand: Pepperl+Fuchs
Code: VAZ-IM1-BASE-S
Switch mount for mechanical safety switches (LIM1 and IM1)
Datasheet excerpt: Technical data of VAZ-IM1-BASE-S
| Product Description |
|---|
| Switch mount for mechanical safety switches (LIM1 and IM1) |
| Mechanical specifications | ||
|---|---|---|
| Material | GFK | |
| Dimensions | Width 76 mm height 345 mm Depth 35 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242692 |
| ECLASS 12.0 | 27242692 |
| ECLASS 11.0 | 27242692 |
| ECLASS 10.0.1 | 27242692 |
| ECLASS 9.0 | 27242692 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121535 |
