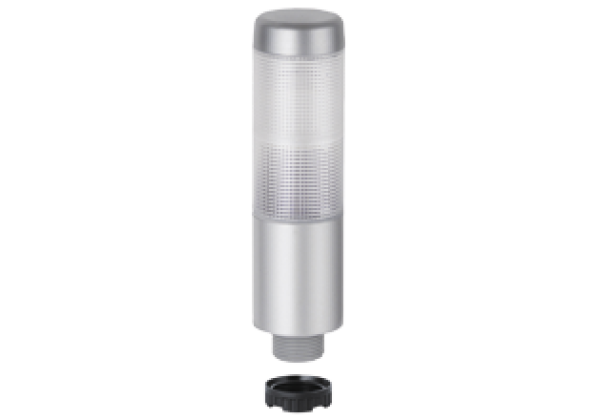

Stack light LED permanent light element VAZ-LED-38MM-YE-RD-2M
Brand: Pepperl+Fuchs
Code: VAZ-LED-38MM-YE-RD-2M
Stack light LED permanent light element, 2-stage signaling
Datasheet excerpt: Technical data of VAZ-LED-38MM-YE-RD-2M
| Product Description |
|---|
| Stack light LED permanent light element, 2-stage signaling |
| General specifications | ||
|---|---|---|
| Light type | LED solid | |
| Color | yellow/red | |
| Electrical specifications | ||
| Rated operating voltage | 24 V AC/DC ± 10 % | |
| Rated operating current | 60 mA | |
| Supply frequency | 50 Hz | |
| Protection class | II | |
| Inrush current | 500 mA | |
| Ambient conditions | ||
| Ambient temperature | -20... 50 °C (-4... 122 °F) | |
| Pollution degree | 3, in connection area 2 | |
| Mechanical specifications | ||
| Housing height | 141 mm | |
| Degree of protection | IP65 | |
| Connection | cable | |
| Cable entry | Membrane sleeve, max. core cross section 0.34 mm2/AWG22 | |
| Material | PC | |
| Mass | 146 g | |
| Cable length | 2 m | |
| Life span | max. 50,000 h | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371220 |
| ECLASS 12.0 | 27371220 |
| ECLASS 11.0 | 27371220 |
| ECLASS 10.0.1 | 27371220 |
| ECLASS 9.0 | 27371220 |
| ECLASS 8.0 | 27371220 |
| ECLASS 5.1 | 27371220 |
| ETIM 9.0 | EC000232 |
| ETIM 8.0 | EC000232 |
| ETIM 7.0 | EC000232 |
| ETIM 6.0 | EC000232 |
| ETIM 5.0 | EC000232 |
| UNSPSC 12.1 | 39121533 |
