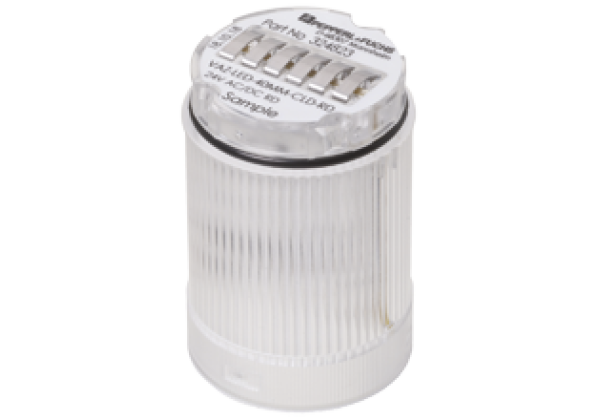

Stack light LED permanent light element VAZ-LED-40MM-CLD-RD
Brand: Pepperl+Fuchs
Code: VAZ-LED-40MM-CLD-RD
Stack light LED permanent light elementt, red
Datasheet excerpt: Technical data of VAZ-LED-40MM-CLD-RD
| Product Description |
|---|
| Stack light LED permanent light elementt, red |
| General specifications | ||
|---|---|---|
| Light type | LED | |
| UL File Number | E223176 | |
| Color | red | |
| Electrical specifications | ||
| Rated operating voltage | 24 V AC/DC | |
| Protection class | II | |
| Current consumption | 35 mA | |
| Inrush current | 500 mA | |
| Ambient conditions | ||
| Ambient temperature | -30... 60 °C (-22... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP66 | |
| Connection | Bayonet system | |
| Material | PC | |
| Mass | 28 g | |
| Life span | max. 50,000 h | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371220 |
| ECLASS 12.0 | 27371220 |
| ECLASS 11.0 | 27371220 |
| ECLASS 10.0.1 | 27371220 |
| ECLASS 9.0 | 27371220 |
| ECLASS 8.0 | 27371220 |
| ECLASS 5.1 | 27371220 |
| ETIM 9.0 | EC000232 |
| ETIM 8.0 | EC000232 |
| ETIM 7.0 | EC000232 |
| ETIM 6.0 | EC000232 |
| ETIM 5.0 | EC000232 |
| UNSPSC 12.1 | 39121533 |
