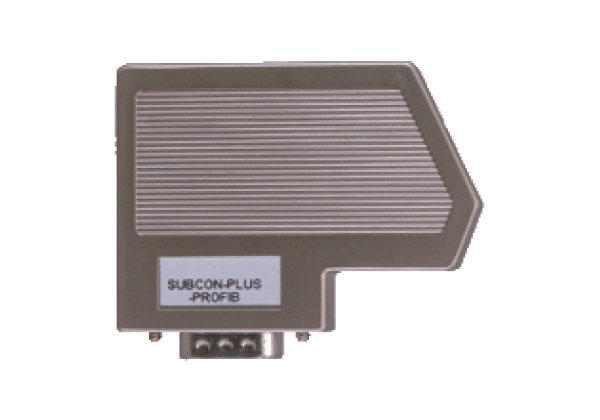

PROFIBUS quick-action connector VAZ-PB-DB9-W
Brand: Pepperl+Fuchs
Code: VAZ-PB-DB9-W
PROFIBUS Sub-D Connector with switchable terminal resistance
Datasheet excerpt: Technical data of VAZ-PB-DB9-W
| Product Description |
|---|
| PROFIBUS Sub-D Connector with switchable terminal resistance |
| Electrical specifications | ||
|---|---|---|
| Rated operating voltage | 60 V AC | |
| Rated operating current | 1 A | |
| Interface | ||
| Protocol | PROFIBUS | |
| Transfer rate | max. 12 MBit/s | |
| Ambient conditions | ||
| Ambient temperature | -20... 75 °C (-4... 167 °F) | |
| Storage temperature | -25... 80 °C (-13... 176 °F) | |
| Mechanical specifications | ||
| Core cross-section | 0.12 mm2 to max. 0.5 mm2 solid | |
| Degree of protection | IP40 | |
| Connection | 9-pin Sub-D connector (pins) | |
| Material | ||
| Housing | metallized ABS | |
| Cable | ||
| Sheath diameter | 7.6 mm ... 8.4 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242692 |
| ECLASS 12.0 | 27242692 |
| ECLASS 11.0 | 27242692 |
| ECLASS 10.0.1 | 27242692 |
| ECLASS 9.0 | 27242692 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121535 |
