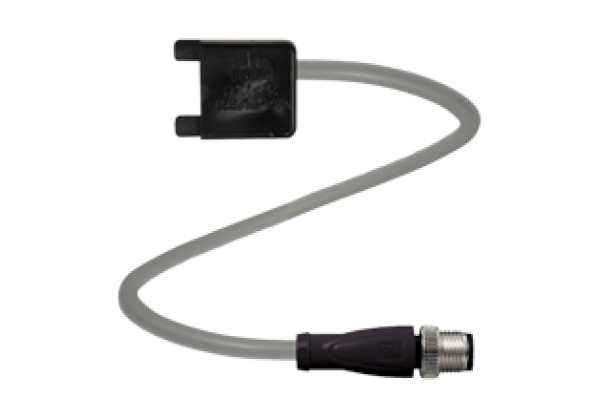

Adapter cable G20 module/hand-held programming device VAZ-PK/G20-1M-V1-G
Brand: Pepperl+Fuchs
Code: VAZ-PK/G20-1M-V1-G
Adapter cable G20 module/hand-held programming device
Datasheet excerpt: Technical data of VAZ-PK/G20-1M-V1-G
| Product Description |
|---|
| Adapter cable G20 module/hand-held programming device |
| Electrical specifications | ||
|---|---|---|
| Operating voltage | max. 250 V AC/DC | |
| Operating current | max. 4 A | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Ambient conditions | ||
| Ambient temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Core cross-section | Copper tin-plated, extra-fine wire, class 6 in accordance with DIN VDE 0295 cross-section 1.5 mm2 | |
| Housing length | 200 mm | |
| Degree of protection | IP20 | |
| Connection | AS-Interface flat cable: cable piercing method Connector: M12 x 1 (V1) | |
| Cable | ||
| Color | Gray | |
| Length | 1 m | |
| Mass | 38 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
