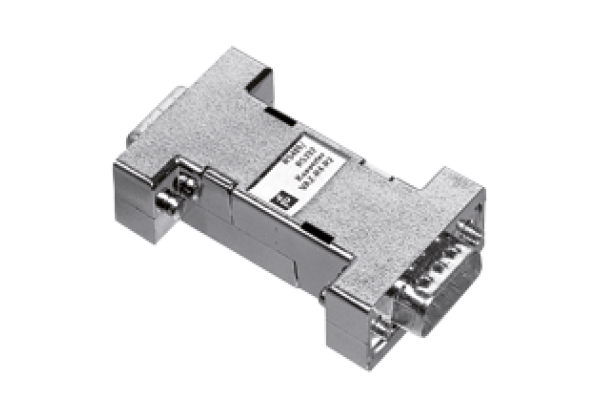

Interface converter RS-232C/RS-485 VAZ-R4-R2
Brand: Pepperl+Fuchs
Code: VAZ-R4-R2
RS 232C/RS 485 converter
Datasheet excerpt: Technical data of VAZ-R4-R2
| Product Description |
|---|
| RS 232C/RS 485 converter |
| Electrical specifications | ||
|---|---|---|
| Power supply | draws its power supply from RS 232 interface of the PC Pin 4 (DTR) must be permanently high. | |
| Interface | ||
| Interface type | Standard PC RS-232 interface with 9-pin D-SUB connector (female) RS-485 interface with 9-pin D-SUB connector (male) | |
| Transfer rate | up to 57600 Bit/s | |
| Cable length | for RS 232 and RS 485 each max. 2 m | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 70 °C (-13... 158 °F) | |
| Mechanical specifications | ||
| Connection | RS 232 , RS-485 | |
| Dimensions | 63, 54, 17 mm (L, W, H) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060390 |
| ECLASS 12.0 | 27060390 |
| ECLASS 11.0 | 27060390 |
| ECLASS 10.0.1 | 27060390 |
| ECLASS 9.0 | 27060390 |
| ECLASS 8.0 | 27060390 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC000310 |
| ETIM 8.0 | EC000310 |
| ETIM 7.0 | EC000310 |
| ETIM 6.0 | EC000310 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
