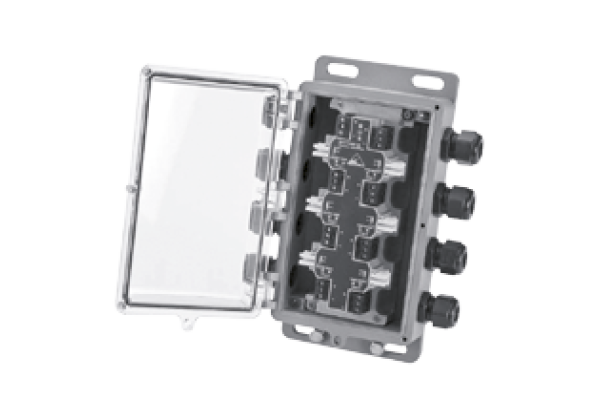

AS-Interface 6 port segment protector VAZ-RK-P-6TEE-CG

Code: VAZ-RK-P-6TEE-CG

AS-Interface 6 port segment protector

Datasheet excerpt: Technical data of VAZ-RK-P-6TEE-CG

Product Description
AS-Interface 6 port segment protector

General specifications
Description		AS-Interface 6 port segment protector
Indicators/operating means
LED Overload		LED red: output overloaded
LED BUS ACTIVE		LED green: flashing = low voltage
LED PWR		LED green: port powered
Electrical specifications
Rated operating voltage		26.5... 31.6 V from AS-Interface
Rated operating current		8 A
Maximum safe voltage		35 V
Interface
Protocol		AS-Interface
Output
Number/Type		6, port segment protector, 1 node each spur connection
Current limit		28 mA (output off) 240 mA (output on) per spur
Voltage drop		< 1 V
Short-circuit current		max. 28 mA
Approvals and certificates
Ambient conditions
Ambient temperature		-40... 80 °C (-40... 176 °F)
Storage temperature		-40... 80 °C (-40... 176 °F)
Vibration resistance
Mechanical specifications
Degree of protection		IP67
Connection		6 Cable glands M20 type
Material
	Housing	Anodized aluminum , stainless steel slot head screws , cover Lexan (PC) , Sealing washers: Buna-N (NBR)
