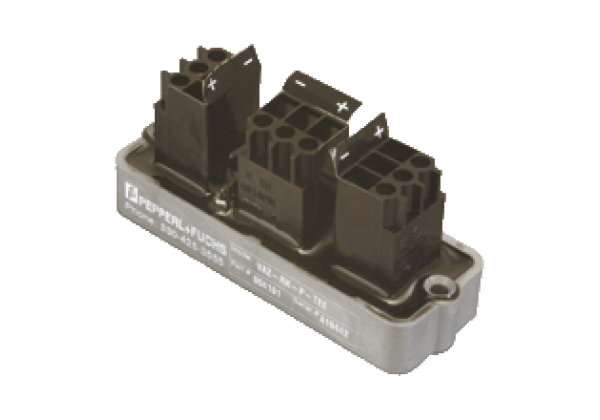

Segment Protector for Cabinet Installation VAZ-RK-P-TEE
Brand: Pepperl+Fuchs
Code: VAZ-RK-P-TEE
AS-Interface one port segment protector
Datasheet excerpt: Technical data of VAZ-RK-P-TEE
| Product Description |
|---|
| AS-Interface one port segment protector |
| General specifications | ||
|---|---|---|
| Description | AS-Interface one port segment protector | |
| Indicators/operating means | ||
| LED Overload | Led red: Output overloaded or shorted | |
| Electrical specifications | ||
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | 8 A | |
| Maximum safe voltage | 35 V | |
| Interface | ||
| Protocol | AS-Interface | |
| Output | ||
| Number/Type | 1/protected drop connection for 1 AS-I node | |
| Current limit | 28 mA (output off) 240 mA (output on) | |
| Voltage drop | < 1 V | |
| Short-circuit current | max. 28 mA | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | terminals: trunk in, trunk out and 1 drop | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242692 |
| ECLASS 12.0 | 27242692 |
| ECLASS 11.0 | 27242692 |
| ECLASS 10.0.1 | 27242692 |
| ECLASS 9.0 | 27242692 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121535 |
