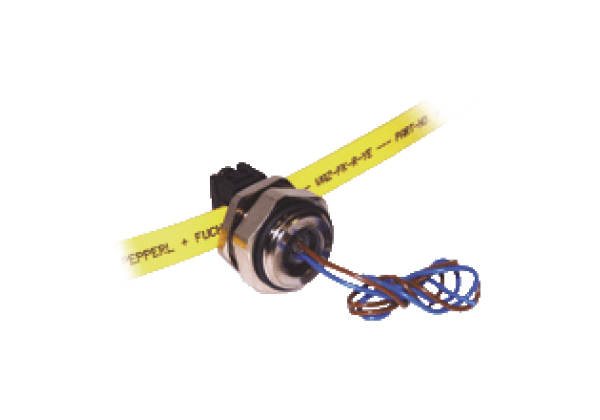

Screw adapter VAZ-T1-FK-PG11
Brand: Pepperl+Fuchs
Code: VAZ-T1-FK-PG11
Screw adapter PG11
Datasheet excerpt: Technical data of VAZ-T1-FK-PG11
| Product Description |
|---|
| Screw adapter PG11 |
| Ambient conditions | ||
|---|---|---|
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 according to EN 60529 | |
| Connection | AS-Interface flat cable | |
| Cable | ||
| Cores | 2 x 0.25 mm2 | |
| Length | Lead length approx. 200 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440111 |
| ECLASS 12.0 | 27440111 |
| ECLASS 11.0 | 27440111 |
| ECLASS 10.0.1 | 27440111 |
| ECLASS 9.0 | 27440108 |
| ECLASS 8.0 | 27279219 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003558 |
| ETIM 8.0 | EC003558 |
| ETIM 7.0 | EC003558 |
| ETIM 6.0 | EC002585 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31261501 |
