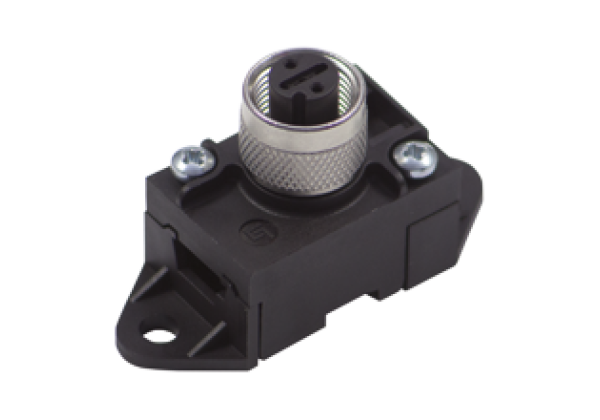

AS-Interface splitter box VAZ-T1-FK-V1
Brand: Pepperl+Fuchs
Code: VAZ-T1-FK-V1
Splitter box AS-Interface to 1x M12 round connector
Datasheet excerpt: Technical data of VAZ-T1-FK-V1
| Product Description |
|---|
| Splitter box AS-Interface to 1x M12 round connector |
| Ambient conditions | ||
|---|---|---|
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 according to EN 60529 | |
| Connection | AS-Interface flat cable, M12 x 1 connector Pin 1 AS-Interface+, Pin 3 AS-Interface- | |
| Dimensions | about 50, 20, 30 mm (L, W, H) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440111 |
| ECLASS 12.0 | 27440111 |
| ECLASS 11.0 | 27440111 |
| ECLASS 10.0.1 | 27440111 |
| ECLASS 9.0 | 27440108 |
| ECLASS 8.0 | 27279219 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003558 |
| ETIM 8.0 | EC003558 |
| ETIM 7.0 | EC003558 |
| ETIM 6.0 | EC002585 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31261501 |
