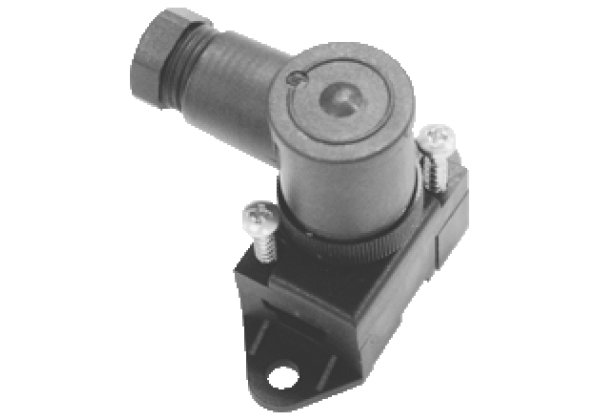

AS-Interface splitter box VAZ-T1-FK-W-PG7
Brand: Pepperl+Fuchs
Code: VAZ-T1-FK-W-PG7
Splitter box, AS-interface to M12 round connector, ready for assembly
Datasheet excerpt: Technical data of VAZ-T1-FK-W-PG7
| Product Description |
|---|
| Splitter box, AS-interface to M12 round connector, ready for assembly |
| Electrical specifications | ||
|---|---|---|
| Rated operating voltage | 26.5... 31.6 V | |
| Rated operating current | ≤ 2 A | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Ambient conditions | ||
| Ambient temperature | -20... 70 °C (-4... 158 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | AS-Interface flat cable | |
| Material | ||
| Contacts | CuZn | |
| Contact surface | Au | |
| Housing | PA | |
| Cable | ||
| Sheath diameter | 4... 6 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440111 |
| ECLASS 12.0 | 27440111 |
| ECLASS 11.0 | 27440111 |
| ECLASS 10.0.1 | 27440111 |
| ECLASS 9.0 | 27440108 |
| ECLASS 8.0 | 27279219 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003558 |
| ETIM 8.0 | EC003558 |
| ETIM 7.0 | EC003558 |
| ETIM 6.0 | EC002585 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31261501 |
