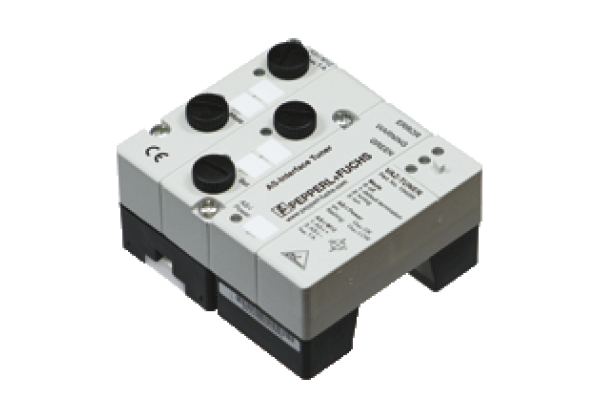

Terminal resistor VAZ-TUNER
Brand: Pepperl+Fuchs
Code: VAZ-TUNER
Active bus terminal resistor
Datasheet excerpt: Technical data of VAZ-TUNER
| Product Description |
|---|
| Active bus terminal resistor |
| General specifications | ||
|---|---|---|
| AS-Interface specification | V3.0 | |
| Indicators/operating means | ||
| LED ERROR | AS-Interface error; LED red | |
| LED WARNING | AS-Interface warning; LED yellow | |
| LED GREEN | AS-Interface OK; LED green | |
| LED POWER | AS-Interface voltage; LED green | |
| Input | ||
| Supply | from AS-Interface | |
| Input current | ≤ 60 mA | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 61000-6-2:2005 EN 61000-6-4:2007 | |
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 70 °C (-13... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | cable piercing method or terminal compartment flat cable or standard round cable | |
| Note | Purpose: improvement of signal quality and voltage monitoring operation on the most remote AS-Interface strand (up to 300 m). | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27260190 |
| ECLASS 12.0 | 19070403 |
| ECLASS 11.0 | 19070403 |
| ECLASS 10.0.1 | 19070403 |
| ECLASS 9.0 | 27279090 |
| ECLASS 8.0 | 27279290 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
