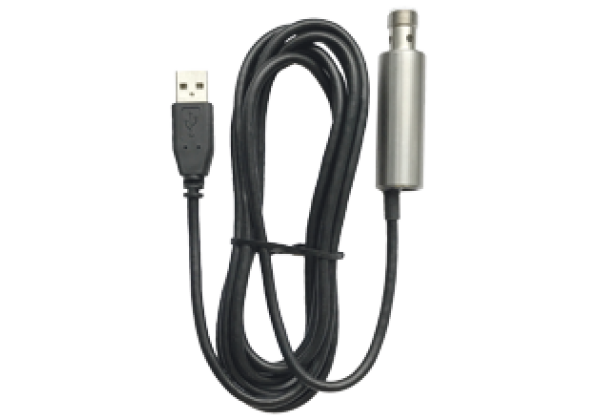

Diagnostic adapter VAZ-ZPA-ANALYZER
Brand: Pepperl+Fuchs
Code: VAZ-ZPA-ANALYZER
Diagnostic adapter for G20 ZPA motor control module
Datasheet excerpt: Technical data of VAZ-ZPA-ANALYZER
| Product Description |
|---|
| Diagnostic adapter for G20 ZPA motor control module |
| Indicators/operating means | ||
|---|---|---|
| LED PWR | Supply voltage Ue; green LED | |
| Electrical specifications | ||
| Rated operating voltage | 5 VDC (via USB) | |
| Rated operating current | ≤ 90 mA | |
| Input | ||
| Input voltage | ≤ 30 V DC | |
| Number/Type | 1 Input: PNP, galvanically isolated, potential-free (XIN) | |
| Input current | ≤ 8 mA (limited internally) | |
| Output | ||
| Number/Type | 1 Electronic output, PNP, overload and short-circuit proof (XOUT) | |
| Supply | from Uin | |
| Current | 10 mA | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61326-1:2013 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Emitted interference | EN 61000-6-4:2007+A1:2011 | |
| Noise immunity | EN 61326-1:2013 (industrial locations) | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -25... 80 °C (-13... 176 °F) | |
| Relative humidity | 85 % non-condensing | |
| Climatic conditions | For indoor use only | |
| Altitude | ≤ 2000 m above MSL | |
| Pollution degree | 2 | |
| Mechanical specifications | ||
| Degree of protection | IP65 according to EN 60529 | |
| Connection | USB: USB 2.0 Type A connector X: M12 round plug connector in accordance with EN 61076-1-101, 4-pin, connector contacts, screw lock, A-coded Female connector: M12, 4-pin, bushing contacts, screw lock, A-coded | |
| Mass | 110 g | |
| Cable length | 2 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242692 |
| ECLASS 12.0 | 27242692 |
| ECLASS 11.0 | 27242692 |
| ECLASS 10.0.1 | 27242692 |
| ECLASS 9.0 | 27242692 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121535 |
