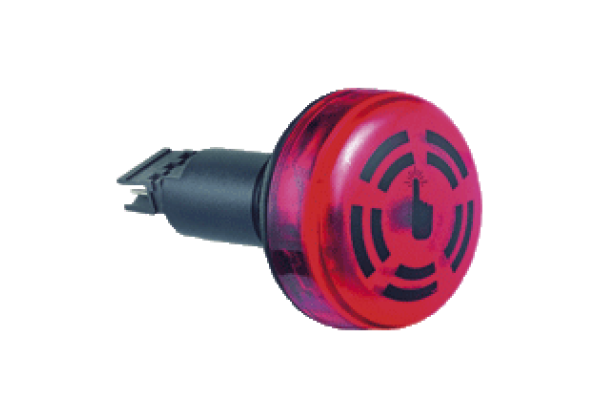

AS-Interface buzzer element VBA-1E2A-BUZZER/LT-RD

Code: VBA-1E2A-BUZZER/LT-RD

AS-Interface buzzer element with acknowledgment

Datasheet excerpt: Technical data of VBA-1E2A-BUZZER/LT-RD

Product Description
AS-Interface buzzer element with acknowledgment

General specifications
Node type		A/B node
AS-Interface specification		V3.0
Required master specification		≥ V2.1
UL File Number		E223176
Color		red
Frequency		2.8 kHz Continuous signal
Loudness		80 dB
Indicators/operating means
LED red		active
Electrical specifications
Rated operating voltage		30 V DC
Rated operating current		≤ 80 mA
Inrush current		< 500 mA
Output
Number/Type		2 internal outputs 1 buzzer, 1 LED red
Supply		from AS-Interface
Voltage		25 V... 31.6 V DC
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 62026-2:2013
Standard conformity
Degree of protection		EN 60529:2000
Fieldbus standard		EN 62026-2:2013
AS-Interface		EN 62026-2:2013
Programming instructions
Profile		S-B.A.E
IO code		B
ID code		A
ID2 code		E
Data bits (function via AS-Interface)		input output
	D0	- OUT1
	D1	- OUT2
	D2	IN1 -
	D3	IN2 -
Parameter bits (programmable via AS-i)
	P0	Transparency on
	P1	buzzer on
	P2	for future expansion
	P3	Acknowledgment signal for buzzer switch-off
Ambient conditions
Ambient temperature		-20... 50 °C (-4... 122 °F)
Mechanical specifications
Degree of protection		IP65
Connection		plug-in screw terminals Wire cross section: ≤1.5 mm² fine-strand
Material		PC/ABS
Mass		40 g
Life span		50000 h (Acoustic: min. 5000 h)
