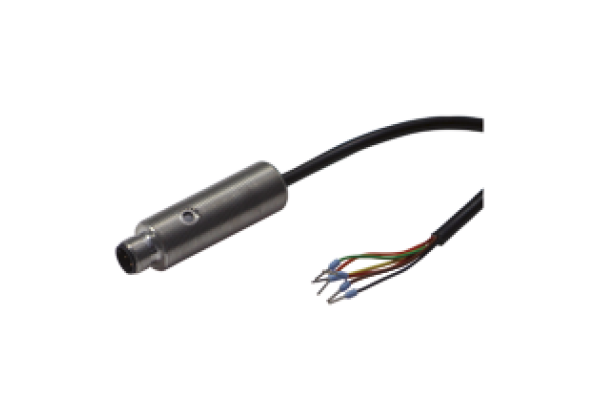

AS-Interface sensor/actuator module VBA-1E3A-M18-ZE/E2-V1
Brand: Pepperl+Fuchs
Code: VBA-1E3A-M18-ZE/E2-V1
AS-Interface module in M18 stainless steel head ferrule
1 input/3 outputs
Datasheet excerpt: Technical data of VBA-1E3A-M18-ZE/E2-V1
| Product Description |
|---|
| AS-Interface module in M18 stainless steel head ferrule 1 input/3 outputs |
| General specifications | ||
|---|---|---|
| Node type | A/B node | |
| AS-Interface specification | V2.1 | |
| Required master specification | ≥ V2.0 | |
| Indicators/operating means | ||
| LED FAULT | communication error / address is 0; LED red | |
| LED PWR | AS-Interface voltage; LED green | |
| Electrical specifications | ||
| Auxiliary voltage (output) | 24 V DC ± 15 % PELV , not short-circuit protected | |
| Insulation voltage | ≥ 500 V | |
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 30 mA | |
| Input | ||
| Number/Type | 1 Input for 2-wire sensor | |
| Supply | from external auxiliary voltage UAUX | |
| Switching point | OFF ≤ 0.8 mA ON ≥ 5 mA | |
| Output | ||
| Number/Type | 3 electronic outputs, PNP | |
| Supply | from external auxiliary voltage UAUX | |
| Current | 20 mA per output | |
| Standard conformity | ||
| Electromagnetic compatibility | acc. to EN 50081-2 / EN 50082-2 | |
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Programming instructions | ||
| Profile | S-9.A.E | |
| IO code | 9 | |
| ID code | A | |
| ID2 code | E | |
| Data bits (function via AS-Interface) | ||
| D0 | ||
| D1 | ||
| D2 | ||
| D3 | ||
| Parameter bits (programmable via AS-i) | function | |
| P0 | not used | |
| P1 | not used | |
| P2 | not used | |
| P3 | not used | |
| Ambient conditions | ||
| Ambient temperature | 0... 70 °C (32... 158 °F) | |
| Storage temperature | -25... 70 °C (-13... 158 °F) | |
| Shock and impact resistance | ≤ 15 g at T ≤ 11 ms, 10... 55 Hz, 0,5 mm amplitude | |
| Mechanical specifications | ||
| Degree of protection | IP67 according to EN 60529 The protection class appplies only for installation of the module in a connection housing for parts of the module located outside of the connection housing (external M12 connection, inside cable connection). The housing duct must be sealed with a suitable adhesive. | |
| Connection | AS-Interface and auxiliary voltage: M12x1 round connector auxiliary voltage, input and outputs: 20 cm connection cable | |
| Mass | 110 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242604 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 6.0 | EC001599 |
| ETIM 5.0 | EC001599 |
| UNSPSC 12.1 | 39121535 |
