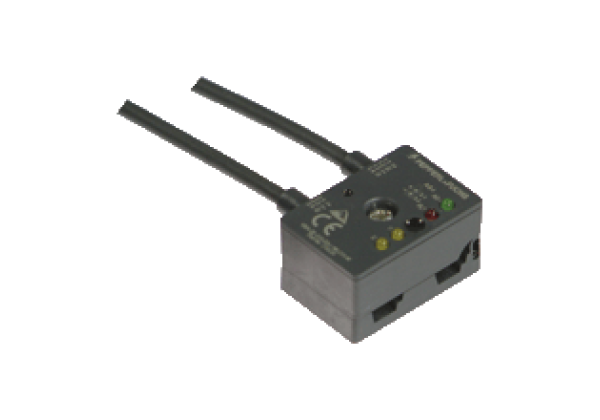

AS-Interface sensor module VBA-2E-G10-ZEJ-2X3M
Brand: Pepperl+Fuchs
Code: VBA-2E-G10-ZEJ-2X3M
G10 ultra-compact module, 2 inputs, open cable ends
Datasheet excerpt: Technical data of VBA-2E-G10-ZEJ-2X3M
| Product Description |
|---|
| G10 ultra-compact module, 2 inputs, open cable ends |
| General specifications | ||
|---|---|---|
| Node type | A/B node | |
| AS-Interface specification | V3.0 | |
| Required gateway specification | ≥ V2.0 | |
| Profile | S-0.A.2 | |
| IO code | 0 | |
| ID code | A | |
| ID1 code | 7 | |
| ID2 code | 2 | |
| UL File Number | E223772 "For use in NFPA 79 Applications only" | |
| Indicators/operating means | ||
| LED FAULT | error display; LED red red: communication error or address is 0 red flashing: overload of sensor power supply or outputs | |
| LED AS-i | AS-Interface voltage; LED green | |
| LED IN | switching state (input); 2 LED yellow | |
| Electrical specifications | ||
| Rated operating voltage | 18.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 40 mA (without sensors) / max. 120 mA | |
| Protection class | III | |
| Surge protection | UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) | |
| Input | ||
| Number/Type | 2 inputs for 2- or 3-wire sensors (PNP), DC | |
| Supply | from AS-Interface | |
| Voltage | 21... 31 V | |
| Current loading capacity | 75 mA at TB ≤ 40 °C (104 °F) 60 mA at TB ≤ 75 °C (167 °F) overload and short-circuit resistant | |
| Input current | ≤ 9 mA (limited internally) | |
| Switching point | according to DIN EN 61131-2 (Type 2) | |
| 0 (unattenuated) | ≤ 3 mA | |
| 1 (attenuated) | ≥ 5 mA | |
| Signal delay | < 1 ms (input/AS-Interface) | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Fieldbus standard | EN 62026-2:2013 | |
| Input | EN 61131-2:2007 | |
| Emitted interference | EN 61000-6-4:2007 | |
| AS-Interface | EN 62026-2:2013 | |
| Noise immunity | EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Type 1 enclosure | |
| Maximum permissible ambient temperature | max. 65 °C (max. 149 °F) | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Shock and impact resistance | 30 g, 11 ms in 6 spatial directions 3 shocks 10 g, 16 ms in 6 spatial directions 1000 shocks | |
| Vibration resistance | 0.75 mm 10... 57 Hz , 5 g 57... 150 Hz, 20 cycles | |
| Mechanical specifications | ||
| Degree of protection | IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-* | |
| Connection | AS-Interface: AS-Interface flat cable Inputs & matching connector: M12 round connector, 4-pin, A-coded, according to IEC 61076-2-101:2012 | |
| Material | ||
| Contacts | CuSn / Au | |
| Housing | PBT PC | |
| Cable | PUR | |
| Mounting screw | Stainless steel 1.4305 / AISI 303 | |
| Cable | ||
| Sheath diameter | ∅4,3 mm | |
| Color | black | |
| Cores | 4 x 0.34 mm2 | |
| Length | 3 m | |
| Mass | 100 g | |
| Tightening torque, fastening screws | 1.65 Nm | |
| Tightening torque, cable gland | 0.4 Nm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242604 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 6.0 | EC001599 |
| ETIM 5.0 | EC001599 |
| UNSPSC 12.1 | 39121535 |
