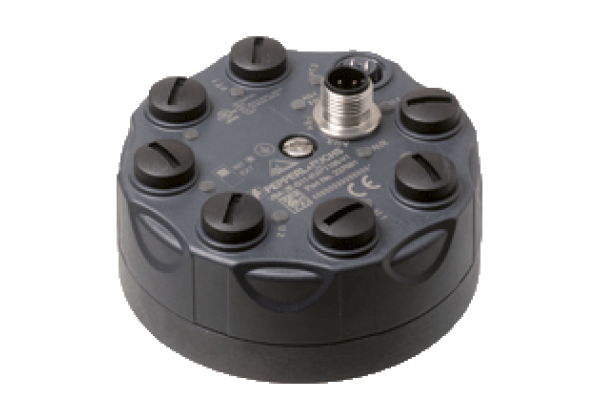

AS-Interface analog module VBA-2E-G11-I/U/PT100-V1
Brand: Pepperl+Fuchs
Code: VBA-2E-G11-I/U/PT100-V1
G11 analog module, 2 analog inputs
Datasheet excerpt: Technical data of VBA-2E-G11-I/U/PT100-V1
| Product Description |
|---|
| G11 analog module, 2 analog inputs |
| General specifications | ||
|---|---|---|
| Node type | Standard node | |
| AS-Interface specification | V3.0 | |
| Required gateway specification | ≥ V2.1 | |
| Profile | S-7.3.D | |
| IO code | 7 | |
| ID code | 3 | |
| ID1 code | F | |
| ID2 code | D | |
| UL File Number | E223772 | |
| Indicators/operating means | ||
| LED AS-i/FAULT | Status display; multi-colour LED Green: normal operation Red: communication fault Flashing yellow/red: address 0 Flashing green/red: peripheral fault | |
| LED ANALOG | status of input signal; LED yellow off: not active on: signal within measurement range flashing: signal outside of measurement range | |
| LED AUX | ext. auxiliary voltage UAUX; dual LED green/red green: voltage OK red: reverse voltage | |
| LED INT/EXT | status display input supply; LED green green: input supply from AS-Interface off: input supply from auxiliary voltage | |
| Electrical specifications | ||
| Auxiliary voltage (output) | 20... 30 V DC PELV | |
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 60 mA (without sensors) / max. 200 mA | |
| Protection class | III | |
| Surge protection | UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) | |
| Input | ||
| Number/Type | 2 analog inputs Current: 0... 20 mA/4... 20 mA voltage: 0... 10 V Pt100: -200... 850 °C | |
| Supply | from AS-Interface (switch position INT, default settings) or auxiliary voltage UEXT (switch position EXT) | |
| Current loading capacity | ≤ 140 mA from AS-Interface; overload and short-circuit resistant ≤ 600 mA from external auxiliary voltage UAUX , overload and short-circuit protected | |
| Input resistance | current input: max. 70 Ω voltage input: 100 kΩ | |
| Measuring current | for Pt100: approx. 1 mA | |
| Accuracy | Voltage/current: 0.1% of accumulated value Pt100: 0.1% of indicated temperature [°C] + 0.3 °C | |
| Resolution | 16 Bit / 1 µA (current input) or 16 bit / 1 mV (voltage input) or 16 Bit / 0.1°C (temperature input) | |
| Temperature influence | Voltage/current: 20 ppm/K Pt100: (10 ppm of indicated temperature [°C] + 0.003 °C)/K | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Fieldbus standard | EN 62026-2:2013 | |
| Input | EN 61131-2:2007 | |
| Emitted interference | EN 61000-6-4:2007 | |
| AS-Interface | EN 62026-2:2013 | |
| Noise immunity | EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Relative humidity | 85 % , noncondensing | |
| Climatic conditions | For indoor use only | |
| Altitude | ≤ 2000 m above MSL | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP68 / IP69K | |
| Connection | AS-Interface/UAUX: M12 round connector Inputs: M12 round connector | |
| Material | ||
| Housing | PBT PC | |
| Mounting screw | Stainless steel 1.4305 / AISI 303 | |
| Mass | 200 g | |
| Tightening torque, housing screws | 1.8 Nm | |
| Tightening torque, cable gland | 0.4 Nm | |
| Mounting | Mounting plate | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242601 |
| ECLASS 12.0 | 27242601 |
| ECLASS 11.0 | 27242601 |
| ECLASS 10.0.1 | 27242601 |
| ECLASS 9.0 | 27242601 |
| ECLASS 8.0 | 27242601 |
| ECLASS 5.1 | 27242601 |
| ETIM 9.0 | EC001596 |
| ETIM 8.0 | EC001596 |
| ETIM 7.0 | EC001596 |
| ETIM 6.0 | EC001596 |
| ETIM 5.0 | EC001596 |
| UNSPSC 12.1 | 39121535 |
