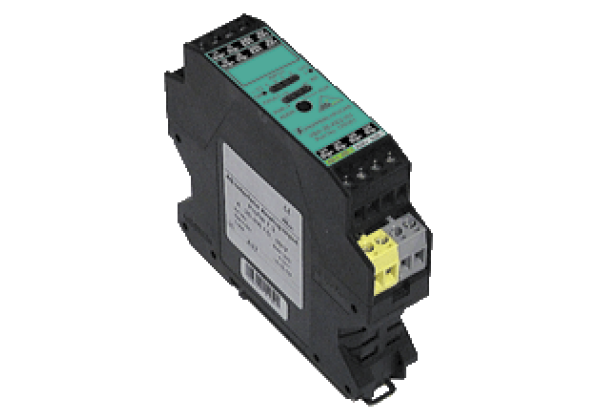

AS-Interface analog module VBA-2E-KE2-I/U-V3.0
Brand: Pepperl+Fuchs
Code: VBA-2E-KE2-I/U-V3.0
KE control cabinet module
2 analog inputs
Datasheet excerpt: Technical data of VBA-2E-KE2-I/U-V3.0
| Product Description |
|---|
| KE control cabinet module 2 analog inputs |
| General specifications | ||
|---|---|---|
| Node type | A/B node | |
| AS-Interface specification | V3.0 | |
| Required gateway specification | ≥ V3.0 | |
| UL File Number | E223772 | |
| Indicators/operating means | ||
| LED FAULT | error display; LED red red: communication error red flashing: peripheral error or address 0 | |
| LED INT | Internal input supply active; LED green | |
| LED PWR | AS-Interface voltage; LED green green: AS-Interface voltage OK green flashing: peripheral error or address 0 | |
| LED AUX | ext. auxiliary voltage UAUX ; LED green | |
| LED -/OK | Status input signal; LED green Off: Not connected (Only current module) On: Signal within measuring range Flashing: Signal outside measuring range | |
| LED U/I | Current or voltage module; Green LED Off: Voltage input On: Current input | |
| Electrical specifications | ||
| Auxiliary voltage (output) | 24 V DC ± 15 % PELV (protection class 3 according to VDE 0106/IEC 364-4-41) | |
| Insulation voltage | ≥ 500 V | |
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 80 mA | |
| Input | ||
| Input voltage | For voltage module: ≤ 25 V per input | |
| Number/Type | 2 analog inputs Current: 4... 20 mA voltage: 0... 10 V | |
| Supply | from AS-Interface or from external auxiliary voltage as required UAUX | |
| Input current | For current module: ≤ 40 mA per input | |
| Input resistance | For current module: 50 Ω For voltage module: 100 kΩ | |
| Switching point | Changeover current/voltage module: current module with Iin ≥ 1 mA voltage module with Uin ≥ 1 V | |
| Resolution | 14 Bit / 1 µA (Current module) or 14 bit / 1 mV (Voltage module) | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 EN 61131-2:2007 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Programming instructions | ||
| Profile | S-7.A.9 | |
| IO code | 7 | |
| ID code | A | |
| ID2 code | 9 | |
| Data bits (function via AS-Interface) | The transfer of the data value is based on AS-Interface Profile 7.A.9. | |
| Parameter bits (programmable via AS-i) | function | |
| P0 | mains power frequency filter P0=1, 50 Hz filter active P0=0, 60 Hz filter active | |
| P1 | P1=1, normal operating mode P1=0, both channels in current mode and without recognition of wire breakage | |
| P2 | Message of peripheral error P2=1, peripheral error is reported P2=0, peripheral error is not reported | |
| Ambient conditions | ||
| Ambient temperature | 0... 70 °C (32... 158 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | removable terminals rated connection capacity: rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 2.5 mm2 for multiple-wire connection with two wires of equal cross-section: flexible with twin wire-end ferrules: 0.5 mm2 ... 1.5 mm2 | |
| Material | ||
| Housing | PA 66-FR | |
| Mass | 350 g | |
| Mounting | DIN mounting rail | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242601 |
| ECLASS 12.0 | 27242601 |
| ECLASS 11.0 | 27242601 |
| ECLASS 10.0.1 | 27242601 |
| ECLASS 9.0 | 27242601 |
| ECLASS 8.0 | 27242601 |
| ECLASS 5.1 | 27242601 |
| ETIM 9.0 | EC001596 |
| ETIM 8.0 | EC001596 |
| ETIM 7.0 | EC001596 |
| ETIM 6.0 | EC001596 |
| ETIM 5.0 | EC001596 |
| UNSPSC 12.1 | 39121535 |
