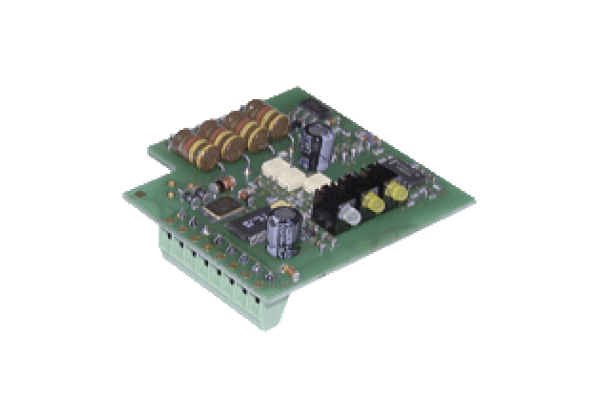

AS-Interface printed circuit board VBA-2E1A-CB-N/E2-S
Brand: Pepperl+Fuchs
Code: VBA-2E1A-CB-N/E2-S
Printed circuit board module
2 NAMUR inputs and 1 electronic output
Datasheet excerpt: Technical data of VBA-2E1A-CB-N/E2-S
| Product Description |
|---|
| Printed circuit board module 2 NAMUR inputs and 1 electronic output |
| General specifications | ||
|---|---|---|
| Node type | A/B node | |
| Indicators/operating means | ||
| LED PWR/FAULT | dual LED green/red LED 1 green: AS-Interface voltage OK LED 1 red: communication error or address is 0 LED 1 green/red flashing: short-circuit or lead breakage | |
| LED IN | 2 LEDs yellow; LED 2 yellow illuminated: switching state IN1 ON, otherwise OFF LED 3 yellow illuminated: switching state IN2 ON, otherwise OFF | |
| Electrical specifications | ||
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 40 mA (without sensors) / max. 150 mA | |
| Protection class | III | |
| Input | ||
| Number/Type | 2 inputs for NAMUR Sensors | |
| Supply | from AS-Interface | |
| Voltage | 8 V | |
| Input current | ≤ 8 mA (limited internally) | |
| Switching point | OFF ≤ 1.2 mA ON ≥ 2.1 mA according to DIN EN 60947-5-6 | |
| Output | ||
| Number/Type | 1 electronic output, switched low, overload and short-circuit proof, lead breakage and short-circuit monitored | |
| Supply | from AS-Interface | |
| Voltage | 21... 31 V | |
| Current | max. 100 mA | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Programming instructions | ||
| Profile | S-D.A.E | |
| IO code | D | |
| ID code | A | |
| ID1 code | 7 | |
| ID2 code | E | |
| Data bits (function via AS-Interface) | ||
| D0 | ||
| D1 | ||
| D2 | ||
| D3 | ||
| Parameter bits (programmable via AS-i) | function | |
| P0 | not used | |
| P1 | not used | |
| P2 | not used | |
| P3 | not used | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 (completely fitted) according to EN 60529 | |
| Connection | screw terminal strip max. conductor cross section 1 mm2 | |
| Mass | 20 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242604 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 6.0 | EC001599 |
| ETIM 5.0 | EC001599 |
| UNSPSC 12.1 | 39121535 |
