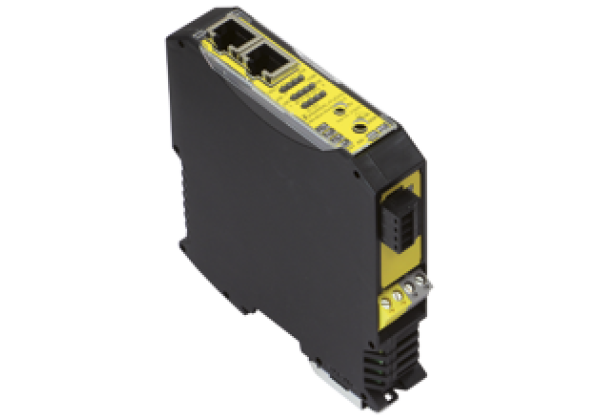

AS-Interface safety module VBA-2E2A-KE4-ENC/SSI-S
Brand: Pepperl+Fuchs
Code: VBA-2E2A-KE4-ENC/SSI-S
KE4 control cabinet module for rotary encoders
2 safe inputs und 2 safe outputs
Datasheet excerpt: Technical data of VBA-2E2A-KE4-ENC/SSI-S
| Product Description |
|---|
| KE4 control cabinet module for rotary encoders 2 safe inputs und 2 safe outputs |
| General specifications | ||
|---|---|---|
| Node type | A/B node | |
| AS-Interface specification | V3.0 | |
| Required gateway specification | ≥ V3.0 | |
| UL File Number | E223772 | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Performance level (PL) | PL e | |
| Mission Time (TM) | 20 a | |
| PFHd | 5.08 E-9 | |
| Indicators/operating means | ||
| LED F1, F2 | rotational movement/halt | |
| LED FAULT | error display; LED red red: communication error | |
| LED ST1, LED ST2 | Status of rotary encoders, 2 yellow LEDs | |
| LED AS-i | AS-Interface voltage; LED green | |
| LED AUX | ext. auxiliary voltage UAUX ; LED green | |
| LED CONF | Dual color-LED, yellow/red, configuration mode | |
| LED O1, O2 | Stauts of outputs | |
| Electrical specifications | ||
| Auxiliary voltage (input) | 18 … 30 VDC | |
| Insulation voltage | 500 V AS-Interface/UAUX: | |
| Rated operating voltage | 18,0... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 150 mA from AS-Interface; ≤ 1400 mA from AUX | |
| Interface 1 | ||
| Interface type | Chip card slot | |
| Input | ||
| Number/Type | 2 inputs for incremental/absolute rotary encoders / 2x RJ45 | |
| Voltage | max. 30 V DC , external | |
| Signal delay | Denpending on frequency, see instruction manual issue "system response time" | |
| Signal frequency | Parameterization range 1 Hz … 250 kHz | |
| Output | ||
| Number/Type | 2 safe electronic outputs | |
| Supply | from external auxiliary voltage UAUX | |
| Voltage | 24 V | |
| Current loading capacity | max contact load: 700 mA DC-13 at 24 V | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Electrical safety | EN 62061:2005 (up to SIL3) EN ISO 13849-1:2008 up to PL e | |
| Input | EN 61131-2:2007 | |
| AS-Interface | EN 62026-2:2013 | |
| Programming instructions | ||
| Profile | Safe input slaves: S-7.B.E. , ID1=F Diagnosis slaves: S-7.A.5., ID1=7 (factory default setting) | |
| IO code | 7 | |
| ID code | B | |
| ID1 code | E | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | removable terminals rated connection capacity: rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 2.5 mm2 for multiple-wire connection with two wires of equal cross-section: flexible with twin wire-end ferrules: 0.5 mm2 ... 1.5 mm2 | |
| Material | ||
| Housing | PA 66-FR | |
| Mounting | DIN mounting rail | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272603 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 6.0 | EC001599 |
| ETIM 5.0 | EC001599 |
| UNSPSC 12.1 | 39121535 |
