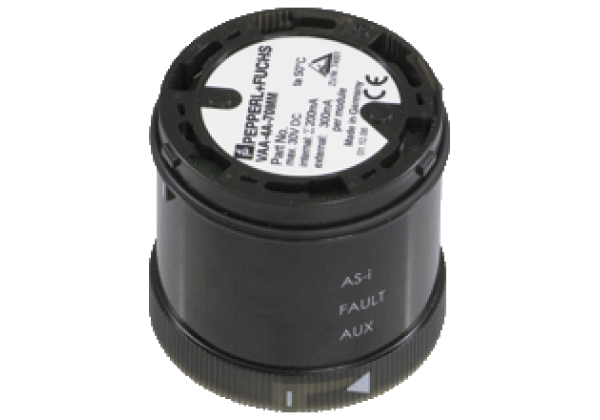

AS-Interface stack light module VBA-4A-70MM
Brand: Pepperl+Fuchs
Code: VBA-4A-70MM
AS-Interface module for stack light
Datasheet excerpt: Technical data of VBA-4A-70MM
| Product Description |
|---|
| AS-Interface module for stack light |
| General specifications | ||
|---|---|---|
| Node type | A/B node | |
| AS-Interface specification | V3.0 | |
| Required gateway specification | ≥ V3.0 | |
| Profile | S-7.A.7 | |
| IO code | 7 | |
| ID code | A | |
| UL File Number | E223176 | |
| Functional safety related parameters | ||
| MTTFd | 300 a | |
| Indicators/operating means | ||
| LED FAULT | communication error / address is 0; LED red | |
| LED AS-i | AS-Interface voltage; LED green | |
| LED AUX | ext. auxiliary voltage UAUX ; LED green | |
| Electrical specifications | ||
| Auxiliary voltage (output) | 20... 30 V DC PELV | |
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 235 mA | |
| Output | ||
| Number/Type | 4 semiconductor relay outputs | |
| Supply | from AS-Interface or from external auxiliary voltage as required UAUX | |
| Voltage | 21... 31 V | |
| Current | AS-interface: ≤ 200 mA for the stack light UAUX: ≤ 300 mA per light element | |
| Ambient conditions | ||
| Ambient temperature | -20... 50 °C (-4... 122 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | Bayonet system | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242604 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 6.0 | EC001599 |
| ETIM 5.0 | EC001599 |
| UNSPSC 12.1 | 39121535 |
