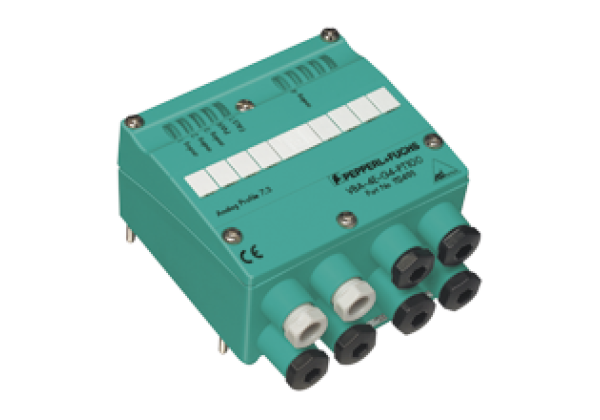

AS-Interface analog module VBA-4E-G4-Pt100
Brand: Pepperl+Fuchs
Code: VBA-4E-G4-Pt100
G4 module IP65
4 inputs for Pt100
Datasheet excerpt: Technical data of VBA-4E-G4-Pt100
| Product Description |
|---|
| G4 module IP65 4 inputs for Pt100 |
| General specifications | ||
|---|---|---|
| Node type | Standard node | |
| AS-Interface specification | V2.1 | |
| Required gateway specification | ≥ V2.1 | |
| UL File Number | E223772 | |
| Functional safety related parameters | ||
| MTTFd | 150 a at 30 °C | |
| Indicators/operating means | ||
| LED FAULT | error display; LED red red: communication error red flashing: peripheral error | |
| LED PWR | AS-Interface voltage; LED green | |
| LED ANALOG | status of input signal; LED green off: not connected (peripheral error) green: signal within measurement range green flashing: signal outside of measurement range (peripheral error) | |
| Electrical specifications | ||
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 80 mA | |
| Protection class | III | |
| Input | ||
| Number/Type | 4 inputs for Pt100, 2- or 3-wire connection | |
| Supply | from AS-Interface | |
| Resolution | 16 Bit / 0.1 °C | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Programming instructions | ||
| Profile | S-7.3.E | |
| IO code | 7 | |
| ID code | 3 | |
| ID2 code | E | |
| Data bits (function via AS-Interface) | The transfer of the data value is based on AS-Interface Profile 7.3. | |
| Parameter bits (programmable via AS-i) | function | |
| P0 | mains power frequency filter P0=1, 50 Hz filter active P0=0, 60 Hz filter active | |
| P1/P2 | Communication of the peripheral fault on measuring channels 1 to 4: [*PD-Z02313A*] | |
| P3 | configuration Pt100 P3=1, 2-wire connection P3=0, 3-wire connection | |
| Ambient conditions | ||
| Ambient temperature | 0... 70 °C (32... 158 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | cable piercing method or terminal compartment yellow flat cable or standard round cable inputs: M12 x 1.5 cable gland and cage tension spring terminals | |
| Material | ||
| Housing | PA 6 GF30 | |
| Mass | 350 g | |
| Mounting | DIN mounting rail | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242601 |
| ECLASS 12.0 | 27242601 |
| ECLASS 11.0 | 27242601 |
| ECLASS 10.0.1 | 27242601 |
| ECLASS 9.0 | 27242601 |
| ECLASS 8.0 | 27242601 |
| ECLASS 5.1 | 27242601 |
| ETIM 9.0 | EC001596 |
| ETIM 8.0 | EC001596 |
| ETIM 7.0 | EC001596 |
| ETIM 6.0 | EC001596 |
| ETIM 5.0 | EC001596 |
| UNSPSC 12.1 | 39121535 |
