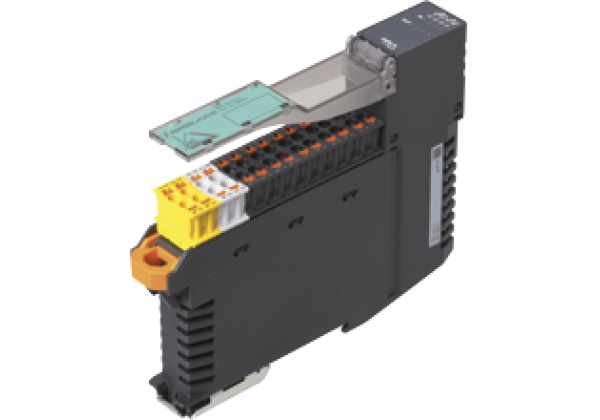

AS-Interface analog module VBA-4E-KE5-IL
Brand: Pepperl+Fuchs
Code: VBA-4E-KE5-IL
Switch cabinet module
4 analog Inputs
Datasheet excerpt: Technical data of VBA-4E-KE5-IL
| Product Description |
|---|
| Switch cabinet module 4 analog Inputs |
| General specifications | ||
|---|---|---|
| Node type | Standard node | |
| AS-Interface specification | V3.0 | |
| Required master specification | ≥ V2.1 | |
| UL File Number | E223772 | |
| MTBF | 173 a | |
| Indicators/operating means | ||
| LED FAULT | Fault indication: red LED Red: communication error or address is 0 Red flashing: peripheral fault | |
| LED PWR | AS-Interface voltage; green LED Green: voltage OK Flashing green: address 0 or peripheral error | |
| LED AUX | ext. auxiliary voltage UAUX; dual LED green/red green: voltage OK red: reverse voltage | |
| LED IN | status of input signal; LED yellow off: not active on: signal within measurement range flashing: signal outside of measurement range | |
| Electrical specifications | ||
| Auxiliary voltage (output) | 20... 30 V DC PELV | |
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 70 mA | |
| Protection class | III | |
| Current consumption | IAUX ≤ 650 mA | |
| Surge protection | UAUX, Ue: overvoltage category II, safe isolated power supplies (PELV) | |
| Input | ||
| Number/Type | 4 analog inputs Current: 0 mA... 20 mA/4 mA... 20 mA | |
| Supply | From auxiliary voltage UAUX | |
| Current loading capacity | ≤ 600 mA From auxiliary voltage UAUX ; overload and short-circuit resistant | |
| Input resistance | current input: max. 70 Ω | |
| Accuracy | 0.1 % of input signal range at 25 °C (298 K) | |
| Resolution | 15 Bit | |
| Temperature influence | 0.0025 %/K of input signal range | |
| Output | ||
| Temperature influence | 1 µA/K or 0,3 mV/K | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Fieldbus standard | EN 62026-2:2013 | |
| Emitted interference | EN 61000-6-4:2007 | |
| AS-Interface | EN 62026-2:2013 | |
| Noise immunity | EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 | |
| Programming instructions | ||
| Profile | S-7.3.E | |
| IO code | 7 | |
| ID code | 3 | |
| ID1 code | F | |
| ID2 code | E | |
| Data bits (function via AS-Interface) | The transfer of the data value is based on AS-Interface Profile 7.3. | |
| Parameter bits (programmable via AS-i) | function | |
| P0 | 50/60 Hz filter P0=1, enabled P0=0, disabled | |
| P1 | not used | |
| P2 | Indication of the peripheral fault by exceeding measuring range P2=1, peripheral fault is reported P2=0, peripheral fault is not reported | |
| P3 | P3=1, wire break detection active P3=0, wire break detection disabled | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Relative humidity | 85 % , noncondensing | |
| Climatic conditions | For indoor use only | |
| Altitude | ≤ 2000 m above MSL | |
| Shock and impact resistance | 15 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks | |
| Vibration resistance | 0.35 mm 10... 57 Hz , 5 g 57... 150 Hz, 20 cycles | |
| Pollution degree | 2 | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | Removable push-in terminals rated connection capacity: rigid: 0.20 mm2... 1.5 mm2 flexible (without wire end ferrule): 0.20 mm2 ... 2.5 mm2 flexible (with wire end ferrule): 0.25 mm2... 1.5 mm2 | |
| Material | ||
| Housing | PA 66-FR | |
| Mass | 110 g | |
| Mounting | DIN mounting rail | |
| Note | Max. length of jumpers = 5 cm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242601 |
| ECLASS 12.0 | 27242601 |
| ECLASS 11.0 | 27242601 |
| ECLASS 10.0.1 | 27242601 |
| ECLASS 9.0 | 27242601 |
| ECLASS 8.0 | 27242601 |
| ECLASS 5.1 | 27242601 |
| ETIM 9.0 | EC001596 |
| ETIM 8.0 | EC001596 |
| ETIM 7.0 | EC001596 |
| ETIM 6.0 | EC001596 |
| ETIM 5.0 | EC001596 |
| UNSPSC 12.1 | 39121535 |
