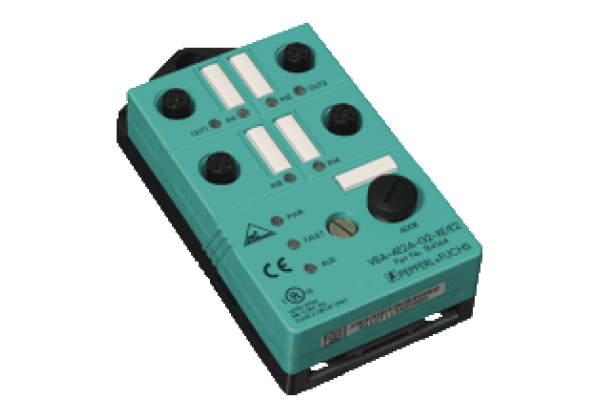

AS-Interface sensor/actuator module VBA-4E2A-G2-XE/E2
Brand: Pepperl+Fuchs
Code: VBA-4E2A-G2-XE/E2
G2 flat module
4 inputs and 2 electronic outputs
Datasheet excerpt: Technical data of VBA-4E2A-G2-XE/E2
| Product Description |
|---|
| G2 flat module 4 inputs and 2 electronic outputs |
| General specifications | ||
|---|---|---|
| Node type | A/B node | |
| AS-Interface specification | V2.1 | |
| Required gateway specification | ≥ V2.1 | |
| UL File Number | E223772 | |
| Indicators/operating means | ||
| LED FAULT | error display; LED red red: communication error or address is 0 red flashing: overload of outputs | |
| LED PWR | AS-Interface voltage; LED green | |
| LED AUX | ext. auxiliary voltage UAUX ; LED green | |
| LED IN | switching state (input); 4 LED yellow | |
| LED OUT | Switching state (output); 2 LED yellow | |
| Electrical specifications | ||
| Auxiliary voltage (output) | 20... 30 V DC PELV | |
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 30 mA | |
| Protection class | III | |
| Current loading capacity | 2 A (IAUX) | |
| Surge protection | UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) | |
| Input | ||
| Number/Type | 4 inputs for mechanical contacts or 3-wire sensors (PNP), DC | |
| Supply | from external auxiliary voltage UAUX | |
| Input current | 3 mA (typically) | |
| Switching point | according to DIN EN 61131-2 (type 1) | |
| 0 (unattenuated) | ≤ 0.5 mA | |
| 1 (attenuated) | ≥ 2 mA | |
| Signal delay | < 2 ms (input/AS-Interface) | |
| Signal frequency | ≤ 250 Hz | |
| Output | ||
| Number/Type | 2 electronic outputs, PNP, overload and short-circuit proof | |
| Supply | from external auxiliary voltage UAUX | |
| Voltage | ≥ (UAUX - 0.5 V) | |
| Current | 1 A per output , 2 A per module | |
| Usage category | DC-13 | |
| Galvanic isolation | ||
| Input/Output | none | |
| Input/AS-Interface | Basic insulation, rated insulation voltage 120 V DC | |
| Output/AS-Interface | Basic insulation, rated insulation voltage 120 V DC | |
| Directive conformity | ||
| Electromagnetic compatibility | observe notices on the certificate of conformity. | |
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Galvanic isolation | EN 60947-1:2007 | |
| Degree of protection | EN 60529:2000 | |
| Mech. capacity | EN 60068-2-6:2008, EN 60068-2-27:1995 | |
| Input | EN 61131-2:2007 | |
| Usage category | EN 60947-5-1:2005 | |
| Emitted interference | EN 61000-6-4:2001 | |
| AS-Interface | EN 62026-2:2013 | |
| Noise immunity | EN 61326-1:2006 | |
| Programming instructions | ||
| Profile | S-7.A.E | |
| IO code | 7 | |
| ID code | A | |
| ID1 code | 7 | |
| ID2 code | E | |
| Data bits (function via AS-Interface) | ||
| D0 | ||
| D1 | ||
| D2 | ||
| D3 | ||
| Parameter bits (programmable via AS-i) | function | |
| P0 | not used | |
| P1 | not used | |
| P2 | not used | |
| P3 | not used | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Relative humidity | 85 % , noncondensing | |
| Climatic conditions | For indoor use only | |
| Altitude | ≤ 2000 m above MSL | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | Cable piercing method flat cable yellow/flat cable black inputs/outputs: M12 round connector | |
| Material | ||
| Housing | PBT | |
| Mass | approx. 100 g | |
| Tightening torque, cable gland | 0.4 Nm | |
| Mounting | Mounting plate | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242604 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 6.0 | EC001599 |
| ETIM 5.0 | EC001599 |
| UNSPSC 12.1 | 39121535 |
