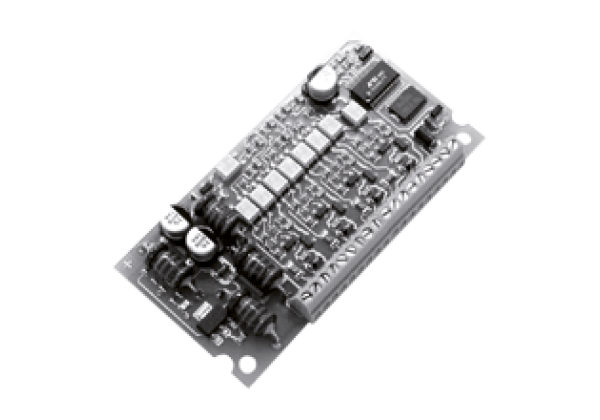

AS-Interface printed circuit board VBA-4E3A-CB-E/E2-S

Code: VBA-4E3A-CB-E/E2-S

Printed circuit board module 4 inputs / 3 outputs

Datasheet excerpt: Technical data of VBA-4E3A-CB-E/E2-S

Product Description
Printed circuit board module 4 inputs / 3 outputs

General specifications
Node type		A/B node
AS-Interface specification		V2.1
Required gateway specification		≥ V2.0
Electrical specifications
Rated operating voltage		26.5... 31.6 V from AS-Interface
Rated operating current		≤ 20 mA (without sensors)
Protection class		III
Input
Number/Type		Four inputs for mechanical contacts, two-wire and three-wire sensors
Supply		from AS-Interface
Voltage		21... 31 V
Input current		≤ 8 mA (limited internally)
Switching point		U_in < 2 V: aus> U_in > 10 V: on
Output
Number/Type		3 electronic outputs, PNP
Supply		from AS-Interface
Voltage		21... 31 V
Current		≤ 80 mA per output, ≤ 80 mA total
Programming instructions
Profile		S-7.A.E
IO code		7
ID code		A
ID2 code		E
Data bits (function via AS-Interface)		InputOutput
	D0	IN1 OUT1
	D1	IN2 OUT2
	D2	IN3 OUT3
	D3	IN4 -
Parameter bits (programmable via AS-i)		function
	P0	not used
	P1	not used
	P2	not used
	P3	not used
Ambient conditions
Ambient temperature		-25... 70 °C (-13... 158 °F)
Storage temperature		-40... 70 °C (-40... 158 °F)
Mechanical specifications
Degree of protection		IP20 (completely fitted) according to EN 60529
Connection		screw terminal strip
