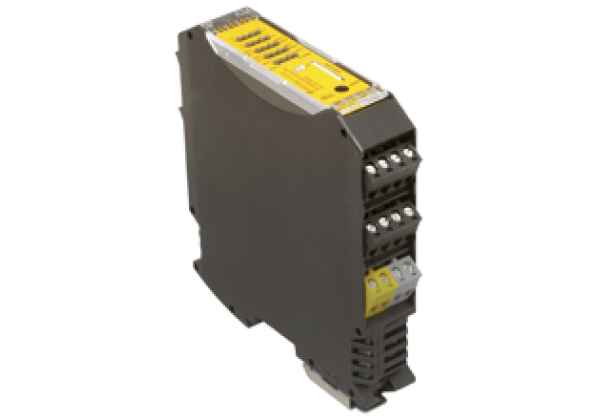

AS-Interface safety module VBA-8E8A8A-KE4-ZEL/E2L/SEL
Brand: Pepperl+Fuchs
Code: VBA-8E8A8A-KE4-ZEL/E2L/SEL
KE4 switch cabinet module
8 safety-related electronic outputs, each switchable with a standard output, 8 standard inputs
Datasheet excerpt: Technical data of VBA-8E8A8A-KE4-ZEL/E2L/SEL
| Product Description |
|---|
| KE4 switch cabinet module 8 safety-related electronic outputs, each switchable with a standard output, 8 standard inputs |
| General specifications | ||
|---|---|---|
| Node type | A/B slave, 2 standard slaves for inputs/outputs, additional slaves can be configured | |
| AS-Interface specification | V3.0 | |
| Required master specification | ≥ V3.0 | |
| Indicators/operating means | ||
| LED FAULT | error display; LED red red: communication error | |
| LED AS-i | AS-Interface voltage; LED green | |
| LED AUX | ext. auxiliary voltage UAUX ; LED green | |
| LED IN | switching state (input); 8 LED yellow | |
| LED OUT | Switching state (output); 8 LED yellow | |
| LED ALARM | Alarm signal from the control; yellow LED | |
| Electrical specifications | ||
| Auxiliary voltage (input) | 24 V (20 VDC... 30 VDC) PELV Max. current consumption: 8 A | |
| Rated operating voltage | 18,0... 31.6 V from AS-Interface | |
| Rated operating current | < 200 mA | |
| Interface 1 | ||
| Interface type | Chip card slot | |
| Input | ||
| Number/Type | 8 digital inputs | |
| Supply | from external auxiliary voltage UAUX | |
| Voltage | 24 V DC | |
| Switching threshold | U < 5 V (low) U > 15 V (high) | |
| Output | ||
| Number/Type | 8 safe electronic outputs 1 - 8 release circuits | |
| Supply | from external auxiliary voltage UAUX | |
| Current loading capacity | 2 A per output, 8 A total Note derating | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Machinery Directive | ||
| Directive 2006/42/EC | EN 13849-1:2008/AC:2009 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Electrical safety | EN 13849-1:2008/AC:2009 | |
| Climatic conditions | EN 61131-2:2007 | |
| AS-Interface | EN 62026-2:2013 | |
| Functional safety | EN 61508:2010 EN 62061:2005/A1:2013 | |
| Programming instructions | ||
| Profile | Diagnostic slave: S-7.A.E, ID1 = 5 Input/output slave: S-7.F.E, ID1 = F Configuration slave: S-7.A.5, ID1 = 7 | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Altitude | 0... 2000 m | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | removable terminals rated connection capacity: rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 2.5 mm2 for multiple-wire connection with two wires of equal cross-section: flexible with twin wire-end ferrules: 0.5 mm2 ... 1.5 mm2 | |
| Material | ||
| Housing | PA 66-FR | |
| Mass | 270 g | |
| Mounting | DIN mounting rail | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272603 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 6.0 | EC001599 |
| ETIM 5.0 | EC001599 |
| UNSPSC 12.1 | 39121535 |
