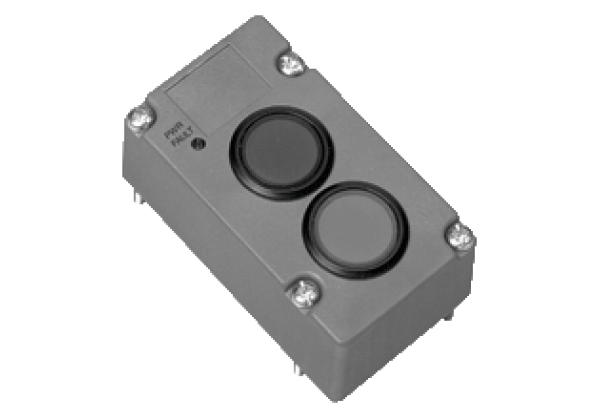

AS-Interface luminous push-button module VBA-LT2-G1
Brand: Pepperl+Fuchs
Code: VBA-LT2-G1
Illuminated pushbutton module
Datasheet excerpt: Technical data of VBA-LT2-G1
| Product Description |
|---|
| Illuminated pushbutton module |
| General specifications | ||
|---|---|---|
| Node type | A/B node | |
| AS-Interface specification | V2.11 | |
| Required gateway specification | ≥ V2.1 | |
| Profile | S-B.A.E | |
| IO code | B | |
| ID code | A | |
| ID2 code | E | |
| Indicators/operating means | ||
| LED PWR/FAULT | dual-LED green/red green: AS-Interface voltage, normal operation red: communication error or address 0 | |
| Button | 2 integrated, protected against accidental activation, keys can be individually labelled, labeling field on the module | |
| Electrical specifications | ||
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 50 mA (LEDs on) | |
| Protection class | III | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 50295 | |
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 according to EN 60529 | |
| Connection | cable piercing method or terminal compartment flat cable or standard round cable | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371228 |
| ECLASS 12.0 | 27371228 |
| ECLASS 11.0 | 27371228 |
| ECLASS 10.0.1 | 27371228 |
| ECLASS 9.0 | 27371228 |
| ECLASS 8.0 | 27371228 |
| ECLASS 5.1 | 27371228 |
| ETIM 9.0 | EC001028 |
| ETIM 8.0 | EC001028 |
| ETIM 7.0 | EC001028 |
| ETIM 6.0 | EC001028 |
| ETIM 5.0 | EC001028 |
| UNSPSC 12.1 | 39121533 |
