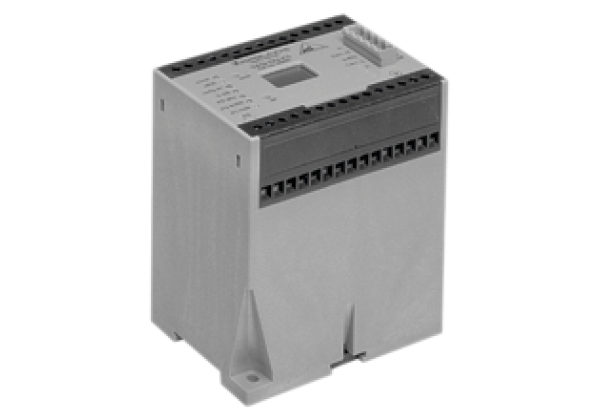

AS-Interface gateway VBG-CAN-K5-D

Code: VBG-CAN-K5-D

CANopen Gateway

Datasheet excerpt: Technical data of VBG-CAN-K5-D

Product Description
CANopen Gateway

General specifications
AS-Interface specification		V2.11
PLC-Functionality		none
Diagnostics function		Extended function via display
Indicators/operating means
Display		Graphical LC display for addressing and error messages
LED AS-i ACTIVE		AS-Interface operation normal; LED green
LED CONFIG ERR		configuration error; LED red
LED PRG ENABLE		autom. programming; LED green
LED POWER		voltage ON; LED green
LED PRJ MODE		projecting mode active; LED yellow
LED U AS-i		AS-Interface voltage; LED green
LED MNS		Module/net status; LED green/red
Switch SET		Selection and setting of a slave address
OK button		Mode selection traditional-graphical/confirmation
Button MODE		Mode selection PRJ-operation/save configuration/cursor
ESC button		Mode selection traditional-graphical/cancel
Electrical specifications
Insulation voltage		≥ 500 V
Rated operating voltage		from AS-Interface
Rated operating current		≤ 200 mA
Interface
Protocol		CANopen
Connection
AS-Interface		screw terminals
DeviceNet		5-pin CombiCon connector according to DeviceNet specification
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 62026-2:2013
Standard conformity
Degree of protection		EN 60529:2000
AS-Interface		EN 62026-2:2013
Ambient conditions
Ambient temperature		0... 55 °C (32... 131 °F)
Storage temperature		-15... 70 °C (5... 158 °F)
Mechanical specifications
Degree of protection		IP40 (housing), IP20 (terminals)
Mass		420 g
Construction type		Low profile housing , plastic
