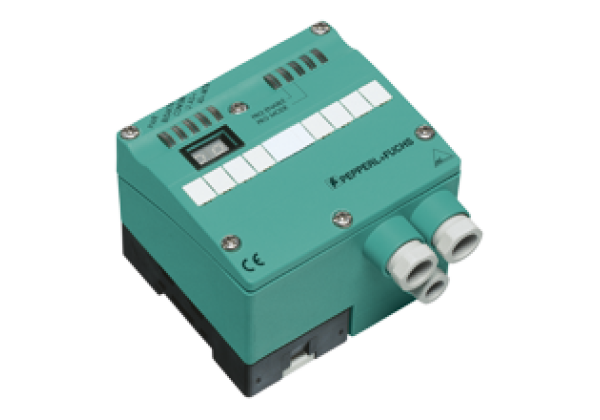

AS-Interface gateway VBG-CCL-G4F

Code: VBG-CCL-G4F

CC Link Gateway IP65

Datasheet excerpt: Technical data of VBG-CCL-G4F

Product Description
CC Link Gateway IP65

General specifications
AS-Interface specification		V2.11
PLC-Functionality		integrated
Diagnostics function		integrated
Indicators/operating means
Display		LED display, 2 digits, for addressing and error messages
LED SD		CC Link send data; LED green
LED RD		CC Link receive data; LED green
LED AS-i ACTIVE		AS-Interface operation normal; LED green
LED CONFIG ERR		configuration error; LED red
LED PWR		voltage ON; LED green
LED L RUN		CC link in operation; LED green
LED L ERR		CC Link error; LED red
LED PRG ENABLE		autom. programming; LED green
LED PRG MODE		projecting mode active; LED yellow
LED U AS-i		AS-Interface voltage; LED green
Switch SET		Selection and setting of a slave address
Button MODE		Mode selection/save configuration
Electrical specifications
Insulation voltage		≥ 500 V
Rated operating voltage		from AS-Interface
Rated operating current		≤ 200 mA from AS-Interface
Interface
Interface type		remote device, 3 occupied stations
Protocol		according to CC-Link specification
Transfer rate		156 kBit/s up to 10 MBit/s
Connection
AS-Interface		cable piercing technology
CC Link		Cable gland M16 x 1.5 and cage spring terminals
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 62026-2:2013
Standard conformity
Degree of protection		EN 60529:2000
AS-Interface		EN 62026-2:2013
Ambient conditions
Ambient temperature		0... 55 °C (32... 131 °F)
Storage temperature		-25... 85 °C (-13... 185 °F)
Mechanical specifications
Degree of protection		IP65
Material
	Housing	PA 6 GF30
Mass		355 g
Construction type		Plastic housing with cable gland
