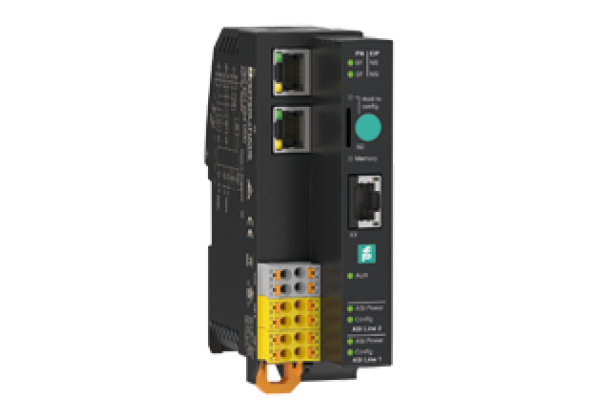

AS-Interface gateway VBG-EP1-KE5-D
Brand: Pepperl+Fuchs
Code: VBG-EP1-KE5-D
AS-Interface gateway
Datasheet excerpt: Technical data of VBG-EP1-KE5-D
| Product Description |
|---|
| AS-Interface gateway |
| General specifications | ||
|---|---|---|
| AS-Interface specification | V3.0 | |
| Earth fault detection | integrated | |
| Diagnostics function | Extended function via diagnostics interface | |
| UL File Number | E223772 | |
| MTBF | at 40 °C 60.7 a | |
| Indicators/operating means | ||
| LED indication | see manual | |
| Button | Saving the Configuration and Reset | |
| Electrical specifications | ||
| Rated operating voltage | from AS-Interface 18... 31.6 V from AUX 20... 30 V | |
| Rated operating current | ≤ 220 mA from AS-Interface segment 1 ≤ 170 mA from AUX | |
| Protection class | III | |
| Nominal voltage | from AS-Interface 30 V DC from AUX 24 V DC | |
| Interface 1 | ||
| Interface type | Fieldbus | |
| Physical | 2 x RJ-45 | |
| Protocol | HTTP EtherNet/IP PROFINET IO | |
| Transfer rate | 10 MBit/s / 100 MBit/s , Automatic baud rate detection | |
| Interface 2 | ||
| Interface type | Service interface | |
| Physical | 1 x RJ45 | |
| Transfer rate | 100 MBit/s | |
| Interface 3 | ||
| Interface type | SD card slot | |
| Connection | ||
| Ethernet | RJ45 | |
| AUX/AS-Interface | removable spring clamp terminals | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 61000-6-2:2005, EN 61000-6-4:2007 | |
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Shock resistance | EN 61131-2:2004 | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Cold start temperature | -40 °C (-40 °F) | |
| Relative humidity | ≤ 95 % non-condensing | |
| Altitude | ≤ 5000 m above MSL | |
| Mechanical specifications | ||
| Degree of protection | IP20 (Manufacturer declaration) | |
| Material | PA 66-FR | |
| Mass | 185 g | |
| Construction type | DIN-rail mounting | |
