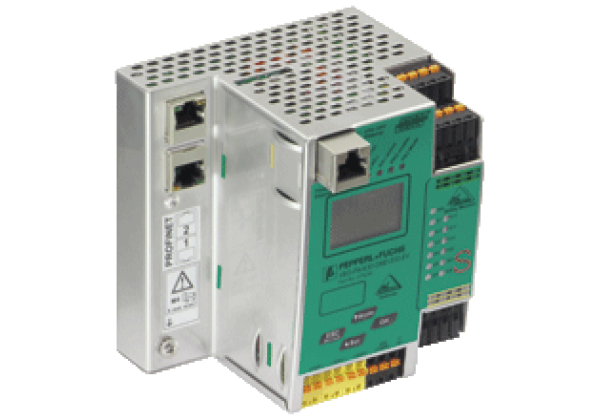

AS-Interface Gateway/Safety Monitor VBG-PN-K30-DMD-S32-EV
Brand: Pepperl+Fuchs
Code: VBG-PN-K30-DMD-S32-EV
PROFINET Gateway with integrated safety monitor, double master for 2 AS-Interface networks, power supply input with decoupling coils
Datasheet excerpt: Technical data of VBG-PN-K30-DMD-S32-EV
| Product Description |
|---|
| PROFINET Gateway with integrated safety monitor, double master for 2 AS-Interface networks, power supply input with decoupling coils |
| General specifications | ||
|---|---|---|
| AS-Interface specification | V3.0 | |
| PLC-Functionality | activateable | |
| Duplicate address detection | from AS-Interface slaves | |
| Earth fault detection | integrated | |
| EMC monitoring | integrated | |
| Diagnostics function | Extended function via display | |
| Data decoupling | integrated | |
| Switch-on delay | < 10 s | |
| Response delay | < 40 ms | |
| UL File Number | E223772 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Performance level (PL) | PL e | |
| MTTFd | 100 a | |
| B10d | 2.5 E+5 | |
| Indicators/operating means | ||
| Display | Illuminated graphical LC display for addressing and error messages | |
| LED ETHERNET | PROFINET master detected; LED green | |
| LED AS-i ACTIVE | AS-Interface operation normal; LED green | |
| LED CONFIG ERR | configuration error; LED red | |
| LED PRG ENABLE | autom. programming; LED green | |
| LED POWER | voltage ON; LED green | |
| LED PRJ MODE | projecting mode active; LED yellow | |
| LED U AS-i | AS-Interface voltage; LED green | |
| LED AUX | ext. auxiliary voltage UAUX ; LED green | |
| LED IN | 6 x LED green | |
| LED OUT | Output circuit closed; 6 x green LEDs | |
| Button | 4 | |
| Switch SET | Selection and setting of a slave address | |
| OK button | Mode selection traditional-graphical/confirmation | |
| Button MODE | Mode selection PRJ-operation/save configuration/cursor | |
| ESC button | Mode selection traditional-graphical/cancel | |
| Electrical specifications | ||
| Insulation voltage | ≥ 500 V | |
| Rated operating voltage | 26.5... 31.6 V from AS-Interface; 24 V DC | |
| Rated operating current | approx. 300 mA PELV | |
| Power supply | max. 4 A per AS-Interface circuit | |
| Interface 1 | ||
| Interface type | PROFINET IO device (IRT) | |
| Physical | 2 x RJ-45 | |
| Protocol | Media Redundancy Protocol (MRP) | |
| Transfer rate | 100 MBit/s | |
| Interface 2 | ||
| Interface type | RJ-45 Ethernet Diagnostic Interface | |
| Transfer rate | 10 MBit/s | |
| Interface 3 | ||
| Interface type | Chip card slot | |
| Input | ||
| Number/Type | 6 inputs Safety: 3 x 2 channels Or 6 standard inputs | |
| Output | ||
| Safety output | 6 semiconductor outputs Output circuits: 6 PNP transistor outputs Max. contact load: 1.2 ADC-13 at 30 VDC, Σ = 7.2 A in total (see derating) | |
| Connection | ||
| PROFINET | RJ-45 | |
| AS-Interface | spring terminals, removable | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2/AC:2005, EN 61000-6-4:2007+A1:2011 | |
| Machinery Directive | ||
| Directive 2006/42/EC | EN 61508:2010 EN ISO 13849-1/AC:2009 EN 62061:2005+A1:2013 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Noise immunity | EN 61000-6-4:2007/A1:2011 EN 61000-6-2/AC:2005 | |
| Shock resistance | EN 61131-2:2004 | |
| Functional safety | EN ISO 13849-1:2008/AC:2009, EN ISO 13849-2:2012 (up to PL e), EN 61508:2010 and EN 62061:2005+A1:2013 (up to SIL3) | |
| Approvals and certificates | ||
| UL approval | An isolated source with a secondary open circuit voltage of ≤ 30 VDC with a 3 A maximum over current protection. Over current protection is not required when a Class 2 source is employed. UL mark does not provide UL certification for any functional safety rating or aspects of the device. | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Material | ||
| Housing | Stainless steel | |
| Mass | 800 g | |
| Construction type | Low profile housing | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242607 |
| ECLASS 12.0 | 27242607 |
| ECLASS 11.0 | 27242607 |
| ECLASS 10.0.1 | 27242607 |
| ECLASS 9.0 | 27242607 |
| ECLASS 8.0 | 27242607 |
| ECLASS 5.1 | 27242607 |
| ETIM 9.0 | EC001603 |
| ETIM 8.0 | EC001603 |
| ETIM 7.0 | EC001603 |
| ETIM 6.0 | EC001603 |
| ETIM 5.0 | EC001603 |
| UNSPSC 12.1 | 39121004 |
