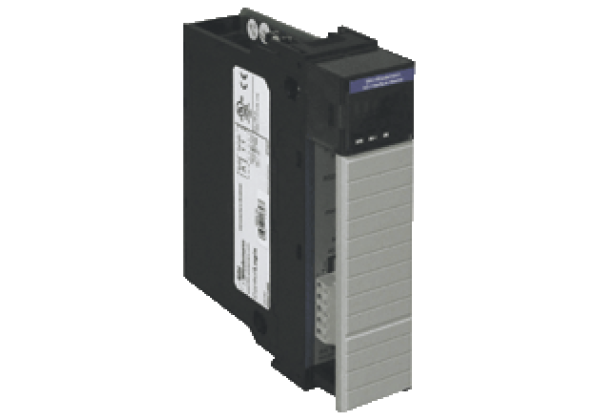

AS-Interface master VBM-CLX-DM
Brand: Pepperl+Fuchs
Code: VBM-CLX-DM
AS-Interface Scanner for ControlLogix PLC
Datasheet excerpt: Technical data of VBM-CLX-DM
| Product Description |
|---|
| AS-Interface Scanner for ControlLogix PLC |
| General specifications | ||
|---|---|---|
| AS-Interface specification | V3.0 | |
| PLC-Functionality | none | |
| Description | AS-Interface Scanner for ControlLogix PLC | |
| Functional safety related parameters | ||
| MTTFd | 115 a at 30 °C | |
| Indicators/operating means | ||
| Display | LC display | |
| LED SYS | LED green: Power on | |
| LED OK | LED green: AS-Interface network running normally; LED green flashing: Configuration mode; LED red flashing: Peripheral fault; LED red: Configuration error; | |
| LED AS-i ACTIVE | LED green: AS-Interface running normally | |
| LED PWR | LED green: Power on | |
| LED PRJ MODE | project mode active; LED yellow | |
| LED AS-i | LED green: AS-I network running normally; LED green flashing: Configuration mode; LED red flashing: Peripheral fault; LED red: Configuration error | |
| Switch SET | Selection and setting of a slave address | |
| Button MODE | Mode selection PRJ-operation/save configuration/cursor | |
| Electrical specifications | ||
| Insulation voltage | ≥ 500 V | |
| Rated operating voltage | from backplane | |
| Rated operating current | 70 mA from Network 1 70 mA from Network 2 390 mA from 5.1 V DC, 2 mA from 24 V DC backplane | |
| Interface | ||
| Protocol | ControlLogix, backplane | |
| Interface 2 | ||
| Interface type | RS 232, serial | |
| Connection | ||
| AS-Interface | double row terminals, removable | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 61000-6-2:2005, EN 61000-6-4:2001, EN 50295:1999 | |
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Shock resistance | EN 61131-2 | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Mass | 375 g | |
| Construction type | Mounting into backplane of ControlLogix PLC rack | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242607 |
| ECLASS 12.0 | 27242607 |
| ECLASS 11.0 | 27242607 |
| ECLASS 10.0.1 | 27242607 |
| ECLASS 9.0 | 27242607 |
| ECLASS 8.0 | 27242607 |
| ECLASS 5.1 | 27242607 |
| ETIM 9.0 | EC001603 |
| ETIM 8.0 | EC001603 |
| ETIM 7.0 | EC001603 |
| ETIM 6.0 | EC001603 |
| ETIM 5.0 | EC001603 |
| UNSPSC 12.1 | 39121535 |
