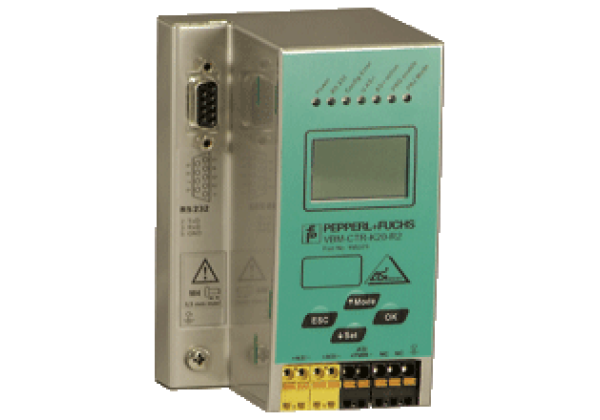

AS-Interface master VBM-CTR-K20-R2
Brand: Pepperl+Fuchs
Code: VBM-CTR-K20-R2
AS-Interface master RS 232 cabinet module
Datasheet excerpt: Technical data of VBM-CTR-K20-R2
| Product Description |
|---|
| AS-Interface master RS 232 cabinet module |
| General specifications | ||
|---|---|---|
| AS-Interface specification | V3.0 | |
| PLC-Functionality | integrated | |
| Earth fault detection | integrated | |
| EMC monitoring | integrated | |
| Diagnostics function | Extended function via display | |
| UL File Number | E223772 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source | |
| Functional safety related parameters | ||
| MTTFd | 180 a at 30 °C | |
| Indicators/operating means | ||
| Display | Illuminated graphical LC display for addressing and error messages | |
| LED RS 232 | interface in operation; LED green | |
| LED AS-i ACTIVE | AS-Interface operation normal; LED green | |
| LED CONFIG ERR | configuration error; LED red | |
| LED PRG ENABLE | autom. programming; LED green | |
| LED POWER | voltage ON; LED green | |
| LED PRJ MODE | projecting mode active; LED yellow | |
| LED U AS-i | AS-Interface voltage; LED green | |
| Switch SET | Selection and setting of a slave address | |
| OK button | Mode selection traditional-graphical/confirmation | |
| Button MODE | Mode selection PRJ-operation/save configuration/cursor | |
| ESC button | Mode selection traditional-graphical/cancel | |
| Electrical specifications | ||
| Insulation voltage | ≥ 500 V | |
| Rated operating voltage | from AS-Interface | |
| Rated operating current | ≤ 150 mA | |
| Interface | ||
| Interface type | RS 232 | |
| Transfer rate | 1200, 2400, 4800, 9600, 19200, 28800, 38400, 57600 or 11500 Bit/s , Automatic baud rate detection | |
| Cable length | max. 30 m | |
| Connection | ||
| AS-Interface | spring terminals, removable | |
| Serial interfaces | 9-pin Sub-D socket | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 61326 | |
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Approvals and certificates | ||
| UL approval | An isolated source with a secondary open circuit voltage of ≤ 30 VDC with a 3 A maximum over current protection. Over current protection is not required when a Class 2 source is employed. UL mark does not provide UL certification for any functional safety rating or aspects of the device. | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -15... 75 °C (5... 167 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Mass | 460 g | |
| Construction type | Low profile housing , Stainless steel | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242607 |
| ECLASS 12.0 | 27242607 |
| ECLASS 11.0 | 27242607 |
| ECLASS 10.0.1 | 27242607 |
| ECLASS 9.0 | 27242607 |
| ECLASS 8.0 | 27242607 |
| ECLASS 5.1 | 27242607 |
| ETIM 9.0 | EC001603 |
| ETIM 8.0 | EC001603 |
| ETIM 7.0 | EC001603 |
| ETIM 6.0 | EC001603 |
| ETIM 5.0 | EC001603 |
| UNSPSC 12.1 | 39121535 |
