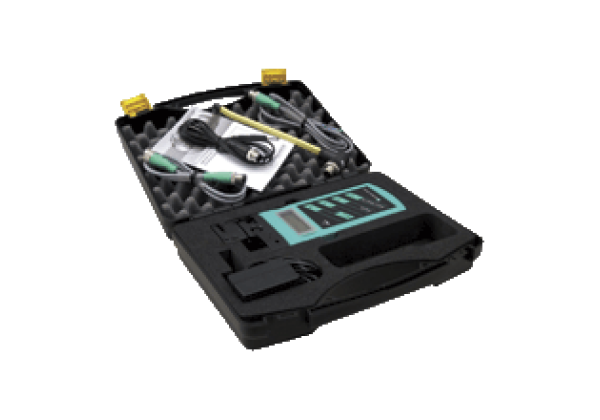

AS-Interface Handheld with accessory VBP-HH1-V3.0-KIT-110V

Code: VBP-HH1-V3.0-KIT-110V

AS-Interface Handheld with accessory

Datasheet excerpt: Technical data of VBP-HH1-V3.0-KIT-110V

Product Description
AS-Interface Handheld with accessory

General specifications
AS-Interface specification		V3.0
Operating mode		Plug-in charging unit, 120 V AC, included with delivery
Indicators/operating means
Display		LC display
Keyboard		membrane keys, 5 keys
Electrical specifications
Operating duration		8 h or ≥ 250 read/write procedures for fully charged battery
Power supply		battery mode, please use only battery charger included with delivery to charge (charging time about 14 h)
Interface
Interface type		AS-Interface, short-circuit proof and overload-proof, or optical
Open loop voltage		28 V
Load current		100 mA at 25 V
Compliance with standards and directives
Directive conformity
	EMC Directive 2004/108/EC	EN 61326-1:2006 , EN 61000-6-4:2007
Standard conformity
	Noise immunity	EN 61326-1:2006
	Emitted interference	EN 61000-6-4:2007
	Degree of protection	EN 60529:2000
Ambient conditions
Ambient temperature		0... 40 °C (32... 104 °F)
Storage temperature		-20... 40 °C (-4... 104 °F)
Mechanical specifications
Degree of protection		IP20
Material
	Housing	plastic
Mass		approx. 1000 g
