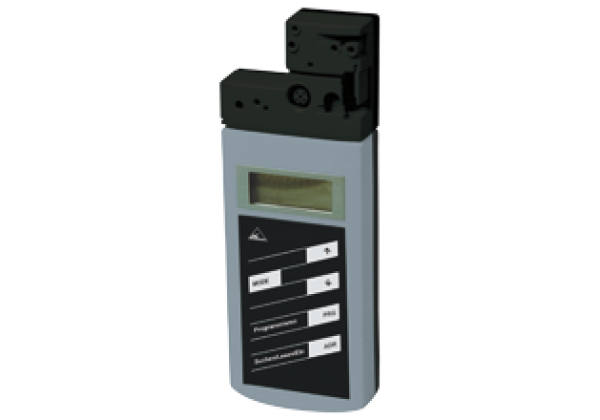

AS-Interface Handheld VBP-HH1-V3.0-OEM
Brand: Pepperl+Fuchs
Code: VBP-HH1-V3.0-OEM
AS-Interface Handheld
Datasheet excerpt: Technical data of VBP-HH1-V3.0-OEM
| Product Description |
|---|
| AS-Interface Handheld |
| General specifications | ||
|---|---|---|
| AS-Interface specification | V3.0 | |
| Operating mode | Plug-in charging unit, 230 V AC, included in the delivery package | |
| Indicators/operating means | ||
| Display | LC display | |
| Keyboard | membrane keys, 5 keys black with gray buttons (without logo) | |
| Electrical specifications | ||
| Operating duration | 8 h or ≥ 250 read/write procedures for fully charged battery | |
| Power supply | battery mode, please use only battery charger included with delivery to charge (charging time about 14 h) | |
| Interface | ||
| Interface type | AS-Interface, short-circuit proof and overload-proof, or optical | |
| Open loop voltage | 28 V | |
| Load current | 100 mA at 25 V | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | Handheld: EN 61326-1:2013 Plug-in charging unit EN 61000-3-2:2014 , EN 61000-3-3:2013 , EN 61000-4-2:2009 , EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014+AC:2015, EN 61000-4-8:2010, EN 61000-4-11:2004+A1:2017 , EN 55032:2015+AC:2016 , EN 55035:2017 | |
| Low voltage | ||
| Directive 2014/35/EU | Plug-in charging unit EN 62368-1:2014+A11:2017 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Electrical safety | Plug-in charging unit EN 62368-1:2014+A11:2017 | |
| Emitted interference | Handheld: EN 61326-1:2013 Plug-in charging unit EN 55032:2015+AC:2016 , EN 55035:2017 | |
| Noise immunity | Handheld: EN 61326-1:2013 Plug-in charging unit EN 61000-3-2:2014 , EN 61000-3-3:2013 | |
| Ambient conditions | ||
| Ambient temperature | 0... 40 °C (32... 104 °F) | |
| Storage temperature | -20... 40 °C (-4... 104 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Material | ||
| Housing | plastic | |
| Mass | approx. 610 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242692 |
| ECLASS 12.0 | 27242692 |
| ECLASS 11.0 | 27242692 |
| ECLASS 10.0.1 | 27242692 |
| ECLASS 9.0 | 27242692 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121535 |
