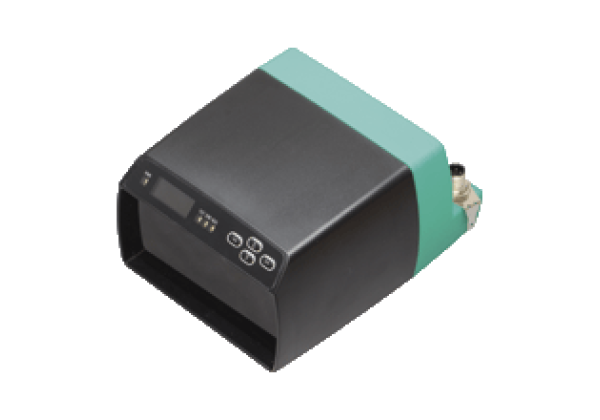

Distance sensor VDM100-300-P/G2
Brand: Pepperl+Fuchs
Code: VDM100-300-P/G2
Distance sensor for positioning tasks accurate to the millimeter, PRT, measuring range up to 300 m, PROFIBUS, M12 plug, Measuring method PRT (Pulse Ranging Technology), Non-contact precision measurement, Ultra-fast data acquisition, Active dynamic control, Modern lightweight design, extremely robust
Datasheet excerpt: Technical data of VDM100-300-P/G2
| Product Description |
|---|
| Distance sensor for positioning tasks accurate to the millimeter, PRT, measuring range up to 300 m, PROFIBUS, M12 plug |
| General specifications | ||
|---|---|---|
| Measurement range | 0.3... 300 m | |
| Reference target | Reflector VDM01 | |
| Light source | laser diode | |
| Laser nominal ratings | ||
| Note | VISIBLE AND INVISIBLE LASER RADIATION , DO NOT STARE INTO BEAM | |
| Laser class | Measuring laser: 1 Alignment laser: 2 | |
| Wave length | Measuring laser: 905 nm Alignment laser: 660 nm | |
| Beam divergence | Measuring laser: 2 mrad Alignment laser: 1 mrad | |
| Pulse length | Measuring laser: 4 ns | |
| Repetition rate | Measuring laser: 20 kHz | |
| Maximum optical power output | Alignment laser: 0.6 mW | |
| max. pulse energy | Measuring laser: 12 nJ | |
| Measuring method | Pulse Ranging Technology (PRT) | |
| Max. Motion velocity | 15 m/s | |
| Alignment aid | Laser pointer Laser class 2 | |
| Life span | > 100000 h | |
| Diameter of the light spot | < 70 cm at 300 m | |
| Ambient light limit | > 100000 Lux | |
| Resolution | 0.1 mm , adjustable | |
| Temperature influence | 0.03 mm/K | |
| Functional safety related parameters | ||
| MTTFd | 89 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Function indicator | 4 LEDs | |
| Control elements | Control panel (4 membrane keys) for setting parameters | |
| Parameterization indicator | Illuminated display for displaying measured values and parameterization | |
| Electrical specifications | ||
| Operating voltage | 18... 30 V DC | |
| No-load supply current | 250 mA (18 V)... 150 mA (30 V) | |
| Protection class | III (operating voltage 50 V) | |
| Time delay before availability | < 10 s | |
| Interface | ||
| Interface type | PROFIBUS DP acc. to EN 50170 | |
| Transfer rate | 9.6 kbit/s... 12 Mbit/s , adjustable | |
| Input/Output | ||
| Input/output type | 2 PNP inputs/outputs, independent configuration, short-circuit protected, reverse polarity protected | |
| Input | ||
| Switching threshold | low: Ue < 6 V, high: Ue > 16 V | |
| Output | ||
| Switching threshold | low: Ua < 1 V, high: Ua > Ub - 1 V | |
| Switching current | 200 mA per output | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Laser safety | IEC 60825-1:2007 | |
| Measurement accuracy | ||
| Measured value output | 1 ms | |
| Average data age | 3 ms , 6 ms , 12 ms , 25 ms , 50 ms , adjustable | |
| Offset | max. 2 mm (between two devices) | |
| Absolute accuracy | ± 2.5 mm (> 3 m); ± 3.5 mm (0.3 m to 3 m) | |
| Repeat accuracy | < 0.5 mm | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| FDA approval | IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 | |
| Ambient conditions | ||
| Ambient temperature | -10... 50 °C (14... 122 °F) | |
| Storage temperature | -20... 70 °C (-4... 158 °F) | |
| Relative humidity | 95 % , no moisture condensation | |
| Mechanical specifications | ||
| Housing width | 140 mm | |
| Housing height | 100 mm | |
| Degree of protection | IP65 | |
| Connection | 4-pin, M12x1 connector, standard (supply) , 5-pin, M12x1 connector, B-coded (Bus In) , 5-pin, M12x1 socket, B-coded (Bus Out) , 8-pin, M12x1 connector, service | |
| Material | ||
| Housing | ABS / PC | |
| Optical face | PMMA , hard coated | |
| Mass | approx. 700 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270916 |
| ECLASS 12.0 | 27270916 |
| ECLASS 11.0 | 27270801 |
| ECLASS 10.0.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 5.1 | 27270801 |
| ETIM 9.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 5.0 | EC001825 |
| UNSPSC 12.1 | 41111613 |
