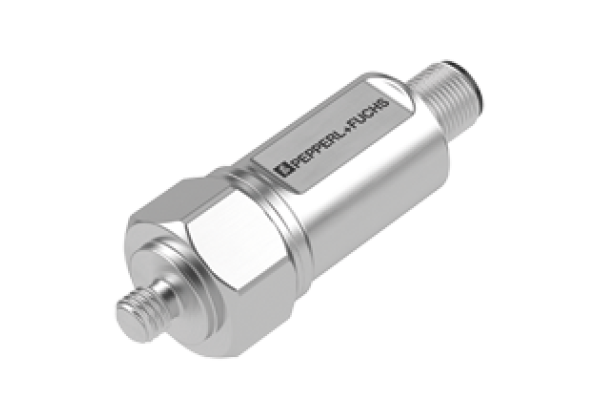

Vibration sensor VIM32PL-E1V16-0RE-I421V14
Brand: Pepperl+Fuchs
Code: VIM32PL-E1V16-0RE-I421V14
Vibration sensor with switching output and analog current output, Series: Performance Line, Measured variable: Vibration velocity, Output type: analog output, current
output of the vibration variable, Output type: PNP, Ordinary Location: E468231 cULus Listed, Class III Power Source and limited energy , if UL marking is marked on the product. For use in NFPA 70 Applications only.
adapters providing field wiring on request, Adaption: M8 x 1.25 external thread
, Connection type: plug
Datasheet excerpt: Technical data of VIM32PL-E1V16-0RE-I421V14
| Product Description |
|---|
| Vibration sensor with switching output and analog current output |
| General specifications | ||
|---|---|---|
| Type | Vibration sensor | |
| Measuring technology | MEMS | |
| Series | Performance Line | |
| Measured variable | Vibration velocity | |
| Measurement range | ||
| Vibration velocity | 0... 16 mm/s | |
| Measurement accuracy | ± 0.1 mm/s (calibration point: 90% of the measuring range; 159.2 Hz) Complies with the tolerance requirements of DIN ISO 2954 for measurement range greater than 8 mm/s | |
| Cross-sensitivity | < 5 % of the partial lateral acceleration, which acts exactly 90° to the measuring axis | |
| Frequency range | 10... 1000 Hz | |
| Averaging time | for v-rms: 2 s | |
| Functional safety related parameters | ||
| MTTFd | 329 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Fusing | external fuse is required: 1 A , fast acting , 30 V DC | |
| Operating voltage | 18... 30 V DC | |
| Current consumption | max. 220 mA | |
| Power consumption | max. 6.6 W | |
| Time delay before availability | 2 s (rms filter is calculated intially with measurement data before they are available at the output) | |
| Surge protection | up to 2 kV | |
| Output 1 | ||
| Output type | analog output, current output of the vibration variable | |
| Output current | 4... 20 mA | |
| Load resistor | ≤ 500 Ω | |
| Output 2 | ||
| Output type | PNP | |
| Switching function | Normally closed (NC) | |
| Operating current | ≤ 100 mA | |
| Voltage drop | < 2 V | |
| Switching threshold | 1.6 mm/s ( 10 % of the measuring range ) | |
| Preset response time | 2 s (minimum time for a vibration event above the switching threshold so that the output switches) | |
| Short-circuit protection | yes | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP66, IP67 | |
| Shock resistance | DIN EN 60068-2-27, 60 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 16.5 g, 10 ... 1000 Hz | |
| Approvals and certificates | ||
| UL approval | ||
| Ordinary Location | E468231 cULus Listed, Class III Power Source and limited energy , if UL marking is marked on the product. For use in NFPA 70 Applications only. adapters providing field wiring on request | |
| Maximum permissible ambient temperature | max. 80 °C (max. 176 °F) | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Storage temperature | -40... 60 °C (-40... 140 °F) | |
| Mechanical specifications | ||
| Connection type | plug | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Housing length | 72.5 mm | |
| Housing diameter | 23.8 mm | |
| Degree of protection | IP66 / IP67 only in connected state | |
| Connector | ||
| Threading | M12 | |
| Number of pins | 4 | |
| Mass | approx. 100 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27271103 |
| ECLASS 12.0 | 27201406 |
| ECLASS 11.0 | 27201406 |
| ECLASS 10.0.1 | 27201406 |
| ECLASS 9.0 | 27201406 |
| ECLASS 8.0 | 27201406 |
| ECLASS 5.1 | 27201406 |
| ETIM 9.0 | EC004309 |
| ETIM 8.0 | EC004309 |
| ETIM 7.0 | EC002959 |
| ETIM 6.0 | EC002959 |
| ETIM 5.0 | EC001758 |
| UNSPSC 12.1 | 41114624 |
